Bart XE

Specifications:


Wing Span: 1.48 m (58")
Length: 1.36 m (53")
Wing Area: 23 dm2 (356 po2)
Wing Airfoil: HN-354
Wing Loading: 32 g/dm2 (10.5 oz/po2)
Flying Weight: 750 g - 1.5 kg (26 oz - 53 oz)
Radio: 10 mm Micro servos in the wings. Micro servos and radio in the fuselage.
Motor Mega 3S to
to HP220/20/A2 P4 5:1

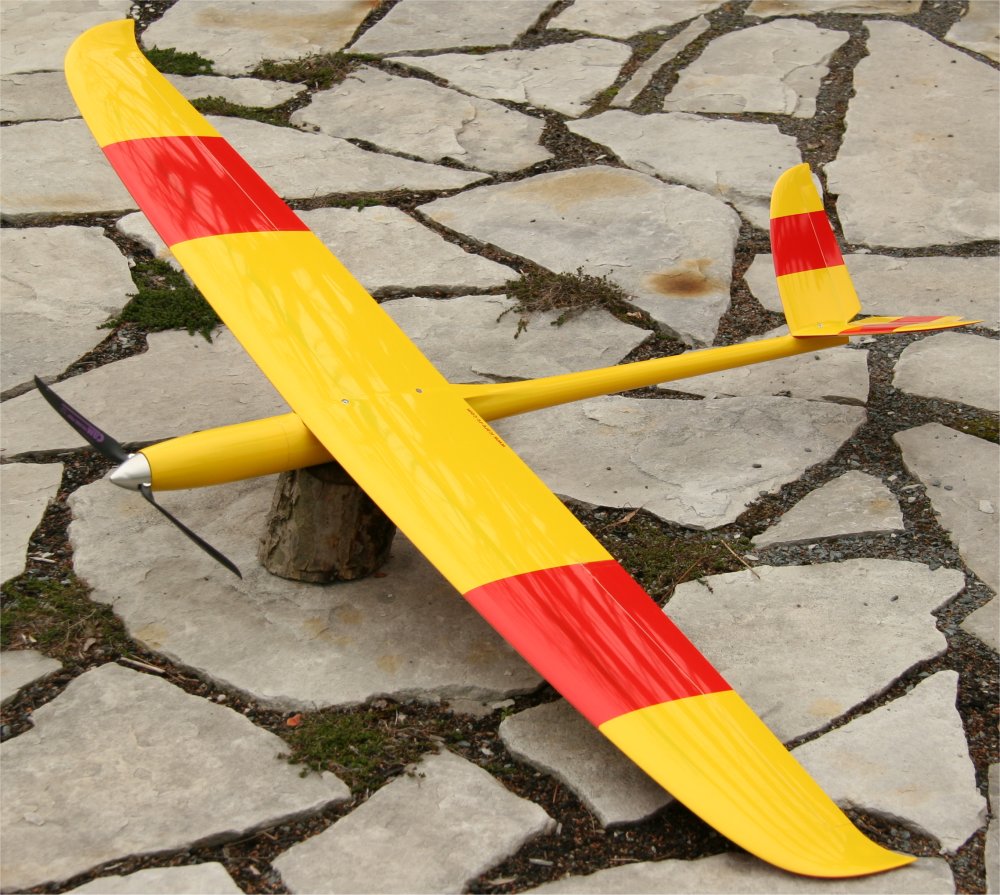

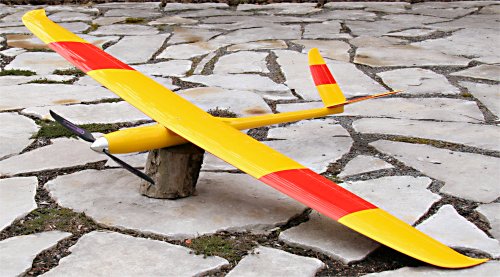

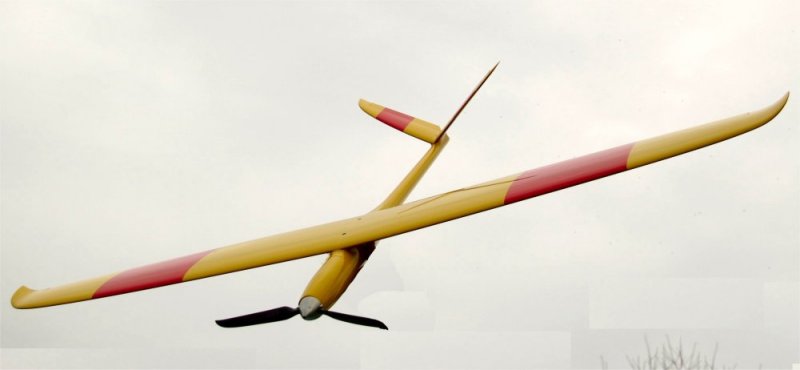

The Bart XE is the electric hotliner version of the slope Bart. This all moulded hotliner excels in high speed flying. Has the ability to accelerate quickly, go fast and retain energy in the turns. Although the Bart XE excels in high speed passes, it's docile in handling allows the intermediate flyer to relax and have fun and fly and hunt thermals, or performing the full range of aerobatics. It features state of the art construction with all flying surfaces being hollow core moulded. It sports a radical elliptical wing plan form which has proven to outperform other designs in high-speed runs.

The HN airfoils are not as well known as some of the more poplar airfoils but have proven themselves to be very efficient in this application. The HN-354 affords low drag at high speed, while maintaining good lift and docile handling at lower speeds, like for thermal flying.

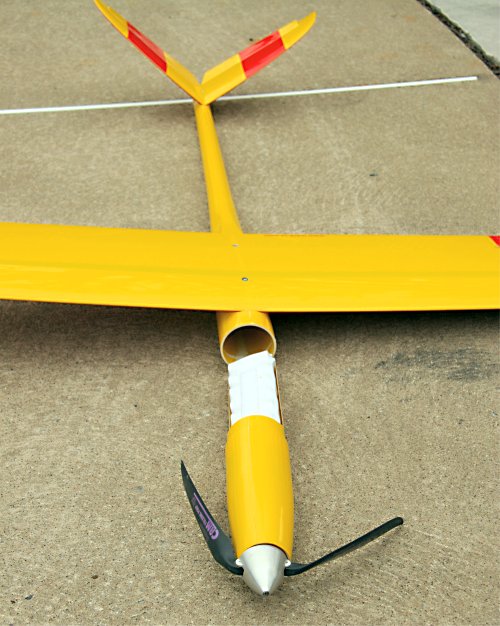

The removable nose cone ease the access to the battery pack for interchange and the the well thought tray attached to it, allows a good array of battery packs to fit, the very clean, stiff and sturdy construction gives a very durable airplane.

Kit content:
A strong fiberglass fuse with a removable canopy, V-tail pushrod pre-installed, and a ballast tube on the bottom of the fuse below the wings, which can accept over a pound of ballast. Strong hollow core moulded one piece wing that bolts down to the fuselage. The V-tail is a one piece unit that also bolts onto the fuselage. All control surfaces are gapless hinged.  Moulded servo covers, a full inventory of high quality hardware and even an Allen key are included to make a very complete kit. Requires (2 or 4) HS125MG and (2) DS281 servo.

Bart XE std with flaps (60" hotliner), price: 449.00U$, on sale 419.00 U$
Bart XE all carbon with flaps (60" hotliner), price: 549.00U$, on sale 509.00 U$

Following options and accessories are also available:

  • Custom paint scheme.
  • Servo package (Volz, Hitec).
  • Carry bag:
