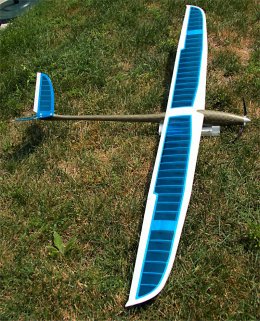

Magellan-E

Specifications:


Wing Span: 2.0 m (79")
Wing Area: 30.6 dm2 (477 sq. in.)
Wing Airfoil: S7037
Wing Loading: 19 g/dm2 (7.5 oz/sq. ft.)
Flying Weight: 560-780 g (19-28 oz)
Radio: Sub Micro servos and micro receiver recommended
Motor Speed 400 geared
Warp BL 4-15-6
Mega 16/25/6

The Magellan electric is the continuing effort in development after the popular Carbon D-light and Koleos series of electric gliders from ICARE. They are based on the same moulded carbon D-box technology that made the Carbon D-light so successful. This type of construction results in a very strong, light wing and a very accurate airfoil shape over the leading edge - the most important part of the airfoil.


Now in the Magellan, the fuselage design has been overhauled to meet the tendency of using more the LiPo battery packs and also to have the ability to use the versatile brushless outrunner motor. The design of the fuselage is now a one pieces canopy style fuselage made from full Kevlar/carbon cloth, for extreme strength, stiffness and lightness.

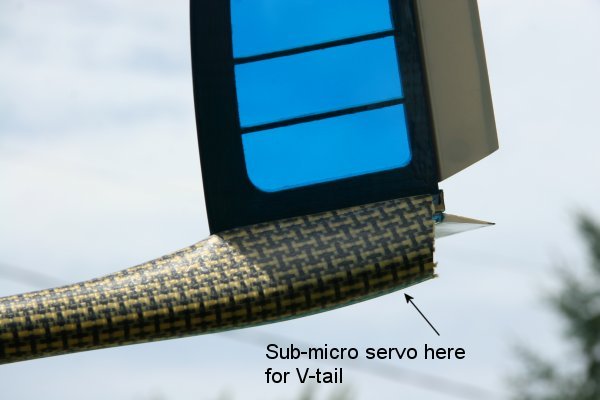

The tail servos have been moved under the V-tail, removing the pushrods and allowing very precise control of the elevator. On the other hand this gives more room for the radio gear and battery installation under the wing. V-tail is also bolt on for easy transportation.

The whole wing is a carbon D-box construction, even the trailing edge, improving the overall stiffness of the wing. Aileron are molded carbon. This, combined with an overall improvement in handling, results in a sailplane that will allow you to work small low-level thermals with confidence.

All parts of the Magellan-E are pre-finished so very little time is required to get it into the air. The two-piece wing is completely finished and covered in Oracover Light, it holds together by means of a steel rod and against the fuselage with two bolts. The balsa "V" tail is covered and only needs to be joined at the center. The fuselage comes complete with a trimmed canopy, wing hold down block. You will need 3-4 of your favorite sub-micro servos and a micro receiver. Hardware package and instruction are completing the kit.

Magellan Electric, ailerons and flaps, V-tail, price: 249.00, on sale 235.00 U$
Magellan
Electric brushless combo, includes a Compact 700, HET20, EP13503S1P LiPo, Cam 11 x 8 folding,
inquire for current pricing.
