Manta-E

Specifications:


Wing Span: 2.0 m (71")
Wing Area: 42 dm2 (651 sq. in.)
Wing Airfoil: S mod.
Wing Loading: 33 g/dm2 (10.8 oz/sq. ft.)
Flying Weight: >1.4 kg (49-54 oz)
Radio: Sub Micro servos and micro receiver recommended
Motor hotline 1400

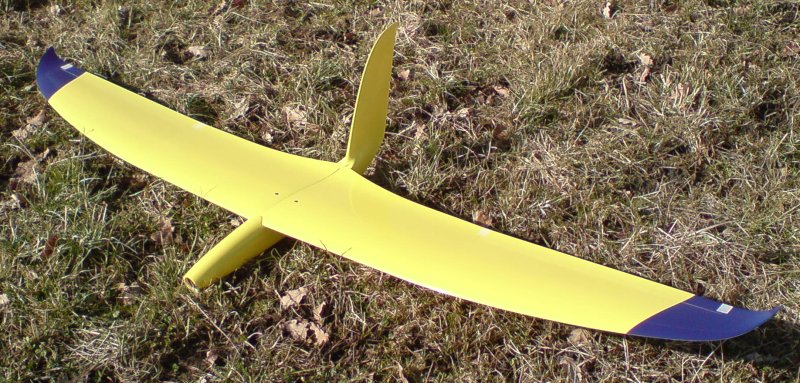

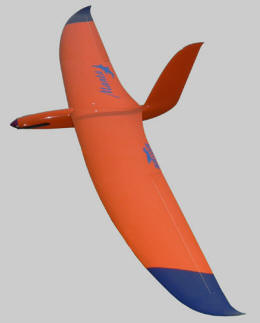

The Manta-E, electric powered flying wing is based on the same building technology then our other molded 60" airframes. It comes with a sturdy carbon reinforced fuselage and a two piece wing bolted onto the fuselage. Wings are hollow molded technology and are carbon reinforced.

Looking for something that turn heads? The Manta-E will not leave you unseen. Its non common shape. The cool and easy flying will bring you lot of fun. Speed passes, aerobatics, fast rolls and many other tricks can be flown with it. Flying wings do not have any bad behavior, so no need to an expert to fly the Manta-E.

It will also do well on slope and can catch thermals on a good day.

Fuselage has enough room for a strong 3-4 liPo cells setup, two strong micro servos are required in the wings, and your Tx needs to have delta wing mix capability.

Kit content is a nice colored carbon reinforced fuselage and two piece hollow molded wings joined by a solid joiner. A small hardware back is completing the kit

Manta-E, two piece wing molded flying wing, price: N/A
Manta-E
combo
available upon request
