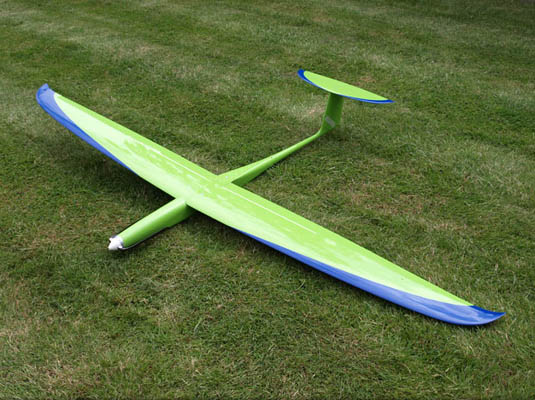

Alex F5B

Specifications:


Wing Span: 1.75m (68")
Length: 1.05 m (41")
Wing Area: 29.1dm2 (452 sq. in.)
Wing Airfoil: NN! 8.2%
Wing Loading: g/dm2 (oz/sq. ft.)
Flying Weight: 1.2-1.4 g (42-49 oz)
Radio: Sub Micro servos and micro receiver recommended
Motor: Mega 3S
HP220/20/A2 P4 5:1



Electric multi-task and performance motor glider

Alex F5B. Suitable for F5B Contest or extremely fast sports flying! Beautifully moulded and strong, its square shape fuselage allows easy installation of r/c gear and battery. Removable T tail for easy transportation. The wing construction is Full Carbon with UHM Carbon spar, making an extremely stiff wing. Fuselage is constructed from carbon reinforced Kevlar/Glass.

Kit is easy to assemble and can be done within few hours
Easy to carry around with its single piece wing and removable T-tail
Comes with flaps and ailerons for easy landing.

Kit content:

Fiberglass fuselage, Kevlar/carbon reinforvced.
Single piece wings hollow molded, carbon reinforced.
Molded T-tail, removable, with control horns installed.
remaining hardware


Recommended Power setups:

Moskito 3G on 3S LiPo, for softliner setup (400W)
Mega 22 3S on 3S LiPo, for hotliner setup (600W)
HP 220/20/A2 P4 5:1, hotliner setup (1kW)

Alex F5B, price: N/A
