Alex-E XXL

Specifications:


Wing Span: 2.54m (100")
Length: 1.35 m (53")
Wing Area: 42.5dm2 (658 sq. in.)
Wing Airfoil: HN353
Wing Loading: 41g/dm2 (13 oz/sq. ft.)
Flying Weight: 1.6-1.8 g (56-63 oz)
Radio: Sub Micro servos and micro receiver recommended
Motor: Mega 3S
HP220/20/A2 P4 5:1



Electric multi-task and performance motor glider

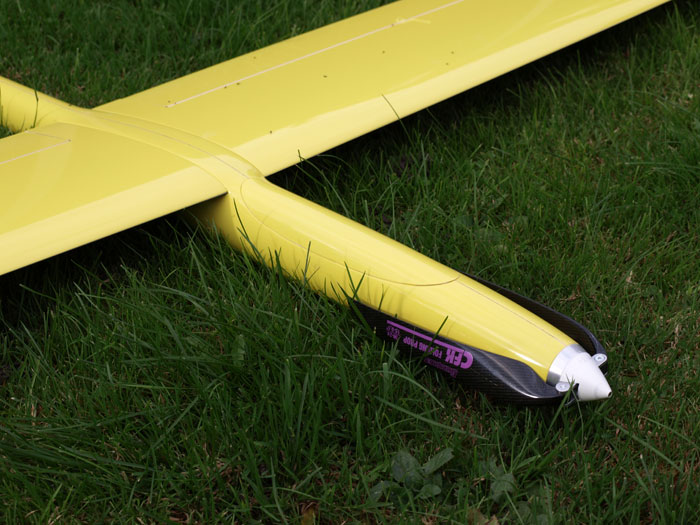

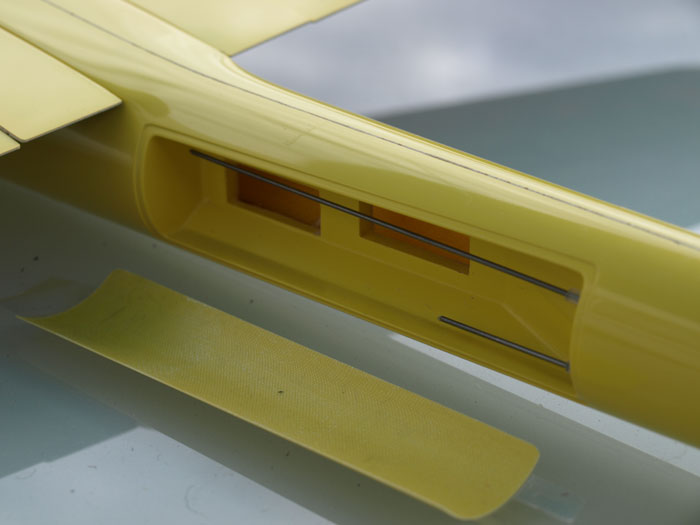

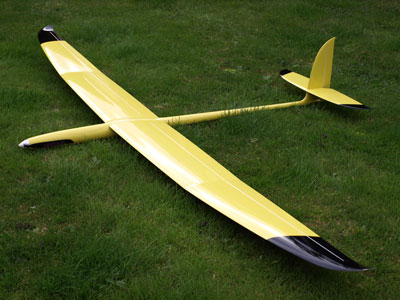

Alex XXL E is a 2.6M span fully molded electric soarer. Install a brushless motor and the performance is blistering. The model travels the sky with ease. Its clean lines and beautifully moulded surfaces add to its desirability. With flaps and ailerons control response is quick and accurate. Aerobatics and fast turns are simple with this machine! The 2.4Ghz friendly fuselage is constructed from Glass/Kevlar, the wing is full Carbon D-Box and very strong but light. A 16x14mm Carbon joiner attaches the wings to the fuselage. Six servos are required for the control surfaces. Fuselage pushrods are pre installed and the kit contains a full hardware pack. A few evenings work will have you climbing into the clouds and soaring like an eagle!

Kit is easy to assemble and can be done within few hours
Easy to carry around with its two piece wings and removable +tail
Comes with flaps and ailerons for easy landing.

Kit content:

Fiberglass fuselage, Kevlar/carbon reinforced.
Single piece wings hollow molded, carbon reinforced.
Molded T-tail, removable, with control horns installed.
remaining hardware


Recommended Power setups:

Moskito 3G on 3S LiPo, for softliner setup (400W)
Mega 22 3S on 3S LiPo, for hotliner setup (600W)
HP 220/20/A2 P4 5:1, hotliner setup (1kW)

Alex-E XXL, price: tbd
