KA 7 5.3m

Specifications:


Scale: 1:3
Wing Span: 5.33 m (212")
Length: 2.71 m (107")
Wing Area:  dm2 ( sq. in.)
Wing Airfoil: Goe 533g/a
Flying Weight: 14.5 kg (32 lbs)
Radio: Standard radio.
Mini and micro servos for the wings.

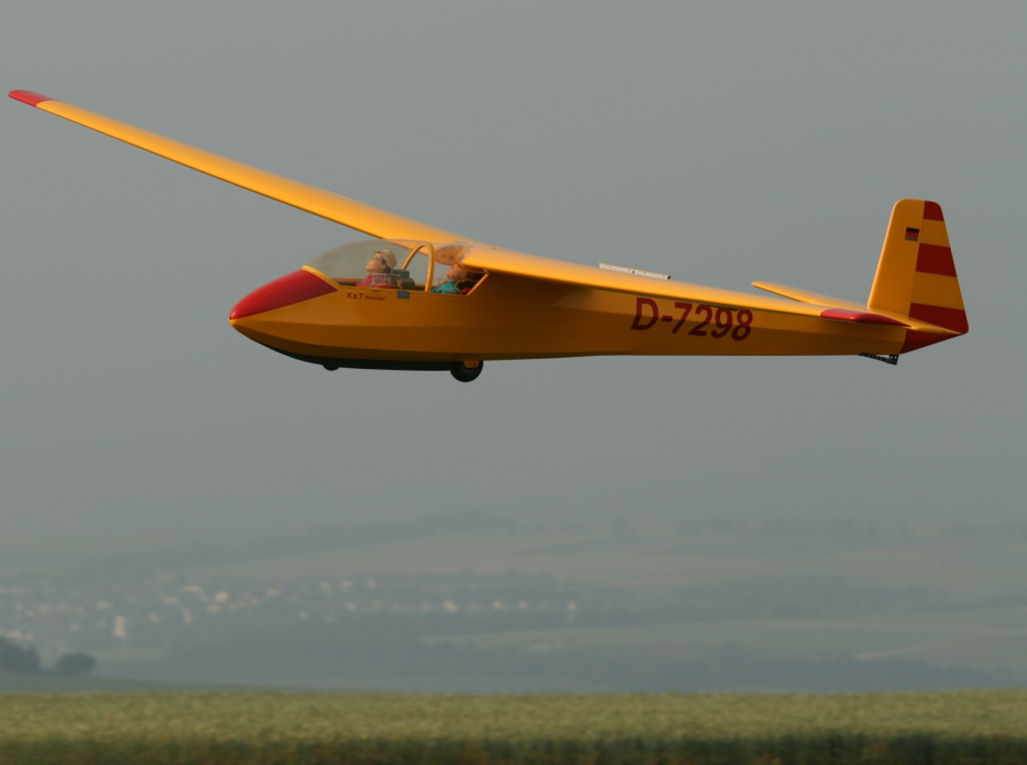

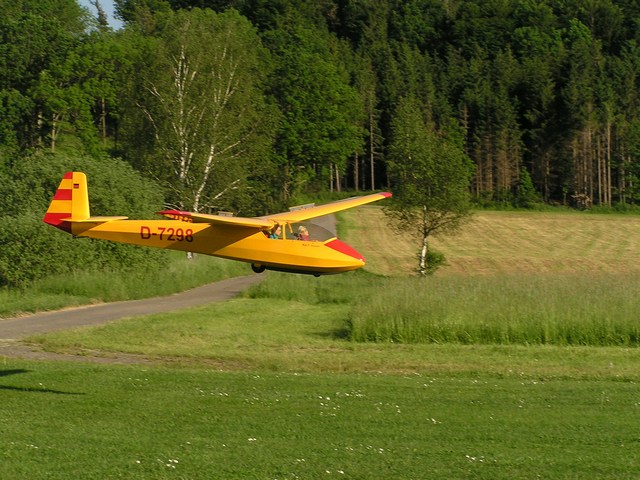

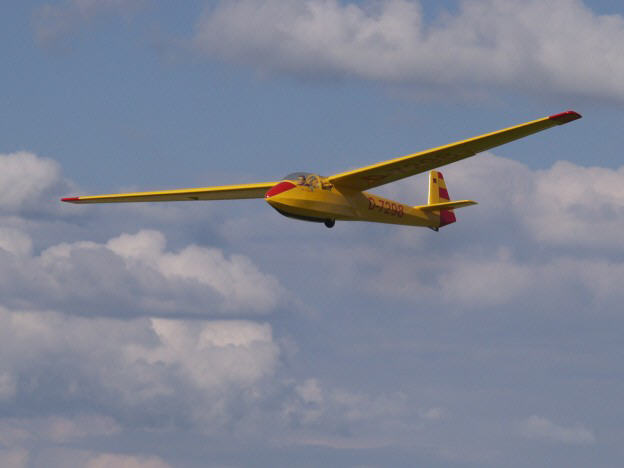

The Ka-7 is a two-place tandem trainer which has very effective dive brakes. It once held the multi-place world record for speed around a 500 km. Triangle at 84 kph/ 45 kt/ 52 mph, set in South Africa in 1964. It succeeded the earlier Ka-2 model, differing mainly by the introduction of a steel tube, fabric covered fuselage in place of wood/ fabric. (from saiplanedierctory.com)

This is an other success model from HB in Germany. It has won several international aero=-tow contests. It features exceptional tow and thermal characteristics. Its unique forward swept wing plan form and overall character has been reproduced at 1:3 scale size. Its robustness and everyday worthiness makes it a timeless classic glider in any flying field.

This kit comes highly prefabricated, and has the complete wing joiners system installed in the wings. Rudder post and rudder finished. Spring loaded landing gear supplied. Canopy needs to be fitted. Wings and tail parts are finished sanded, ready to cover.

Content:

- White epoxy gel coated fibreglass fuselage.
- Wings, elevator and rudder are obechi sheeted, carbon reinforced, ready to cover
- Airbrakes installed.
- Spring loaded landing gear comes with 112mm wheel
- Canopy and frame

Radio requirements are two std servos for the ailerons, two for the airbrakes, three regular servos for the elevator, rudder and tow release.

KA-7 Roehnadler, 5.33 m, ARC kit, price: 3475.00 U$
