Specifications:


Scale: 1:2
Wing Span: 7.5 and 9 m (24.7' and 29.7')
Length: 3.2 m (128")
Wing Area:  dm2 ( sq. in.)
Wing Airfoil: HQW 3
Wing Loading:  g/dm2 ( oz/sq. ft.)
Flying Weight: below 25 kg (55 lbs)
Radio: Standard radio.
High torque servos for the wings and tail.

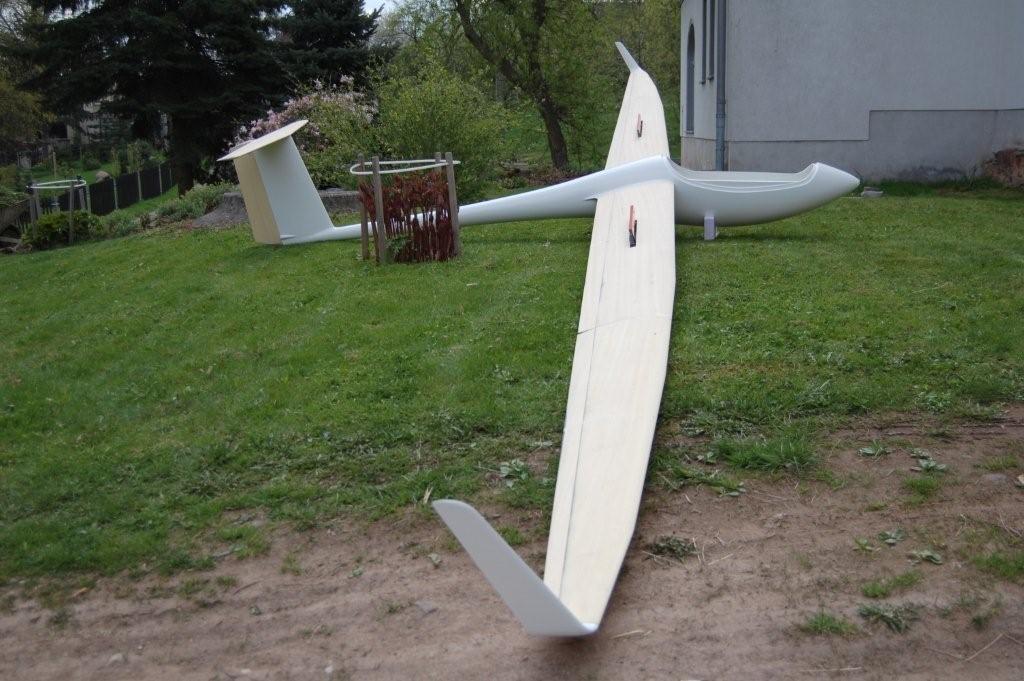

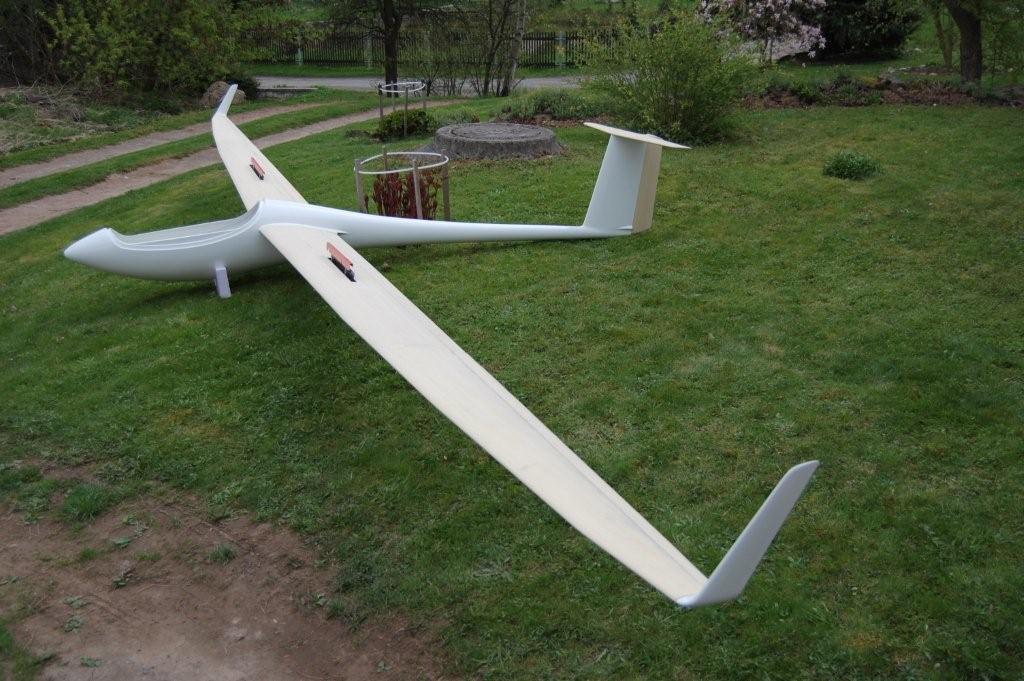

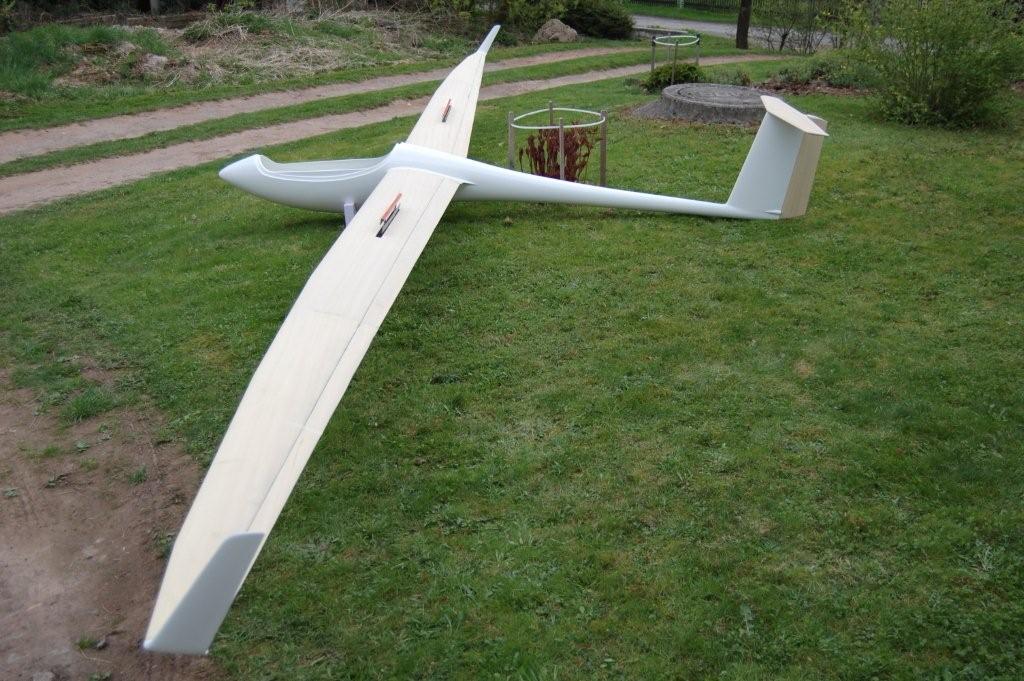

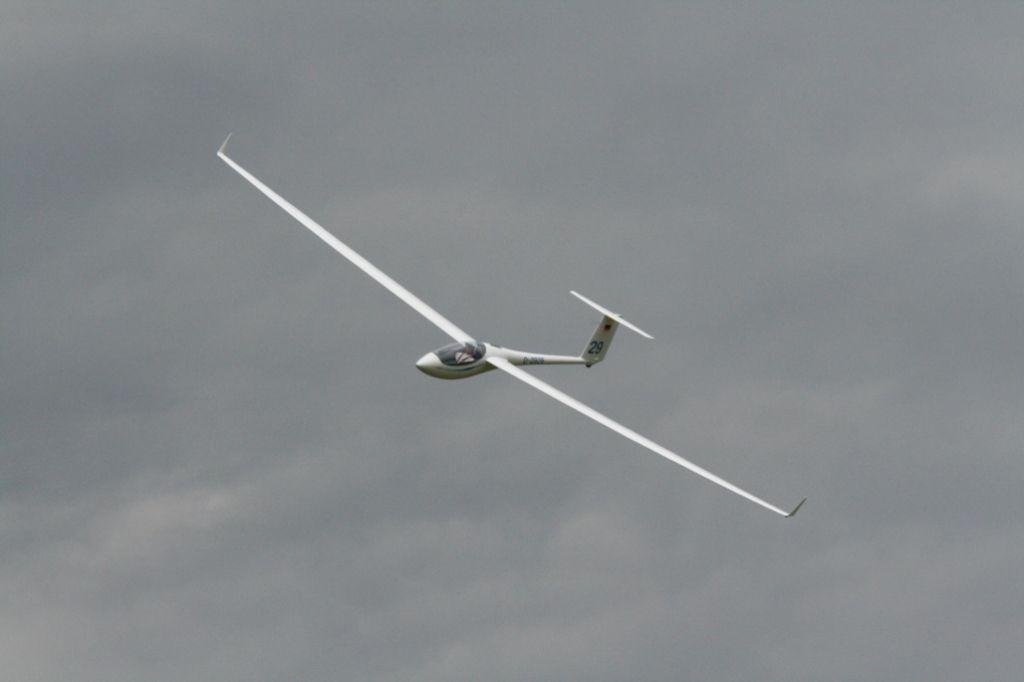

Larger, bigger, even bigger luxury and performance, that is what what you will get with this super orchid of 1:2 scale ASG-29.

This is latest development at Schleicher company, they just added this new glider of a new generation family, the ASG, in the 18m class. It is designed by Michael Greiner, their new design associate and it has been marketed during year 2006.

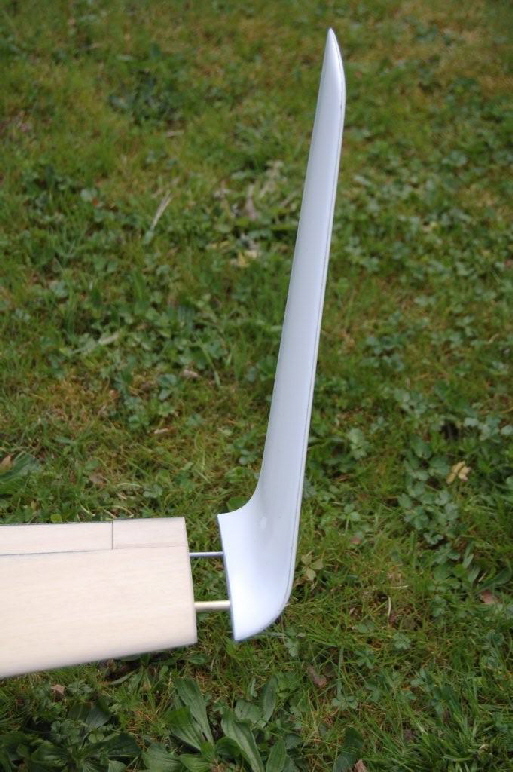

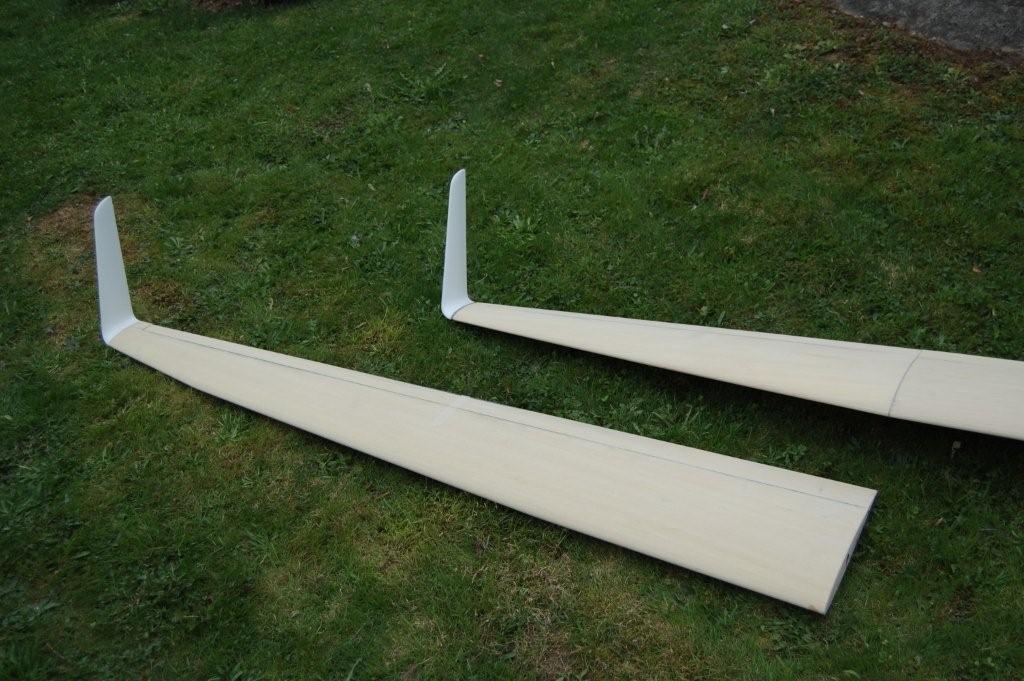

This kit is manufactured in Germany to the highest building standard by HB Modell. Their expertise in very large scale glider is well-known, and all their kits are great flyer. You will get here a sate of the art airframe and a high performance scale glider. It features interchangeable wing tips. Wings are in four pieces for ease of transportation. All control surfaces are gapless knuckle hinged. Moulded winglets. Extra large airbrakes.

This kit comes highly prefabricated, and has the complete wing joiners system installed. Rudder post and rudder fitted. High end retractable landing gear comes pre-installed. Canopy scale opening mechanism is supplied, needs to be fitted. Wings and tail parts are finished sanded, ready to cover.

Content:

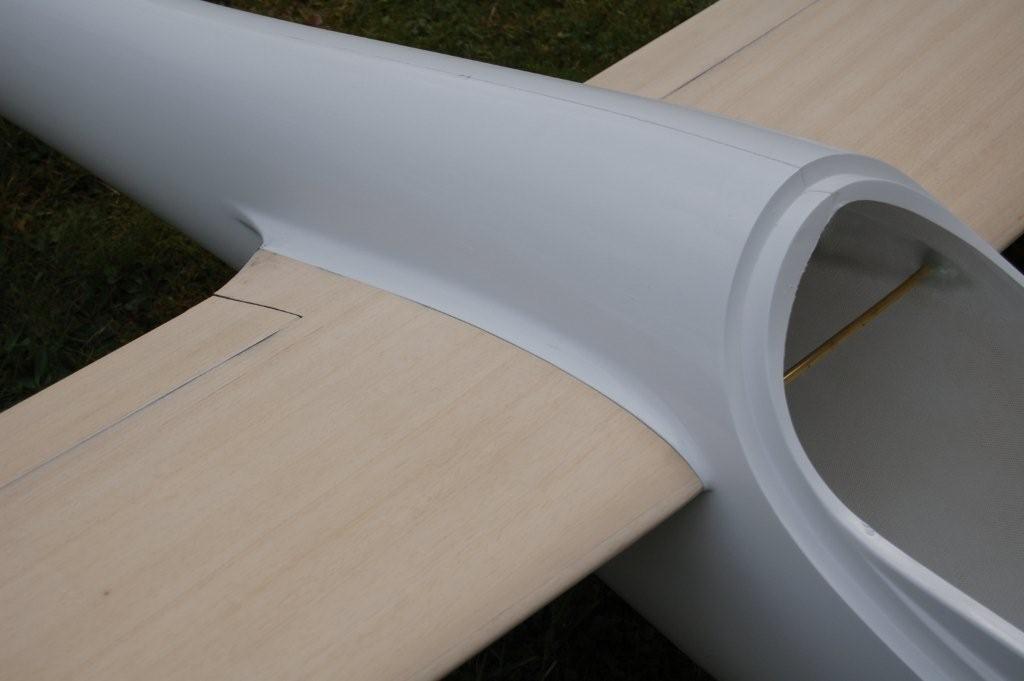

- White epoxy gel coated fibreglass fuselage.

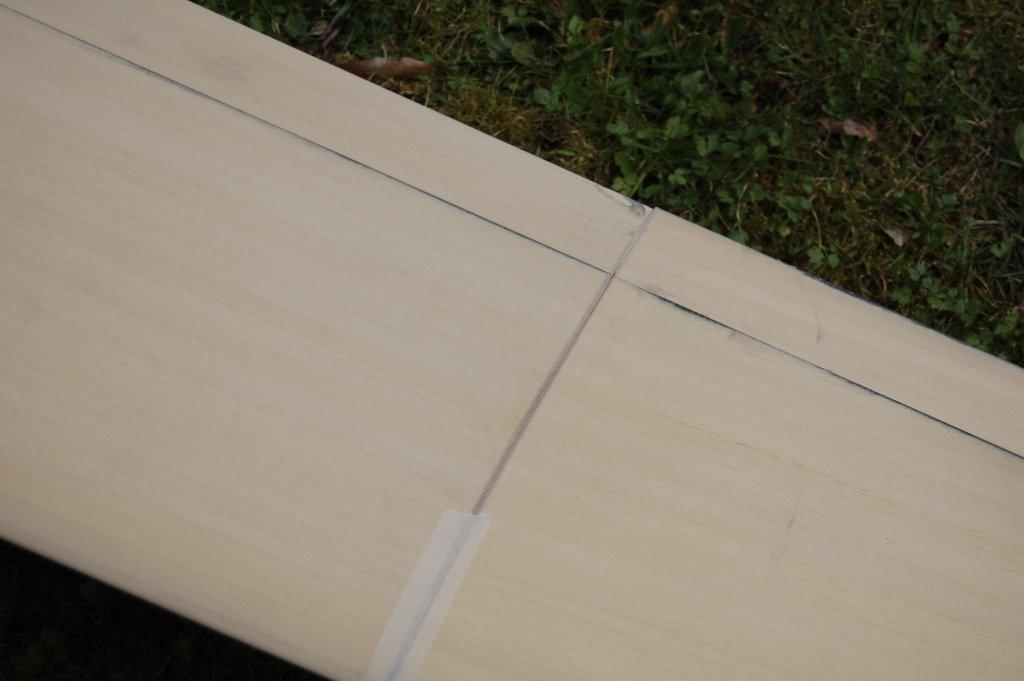

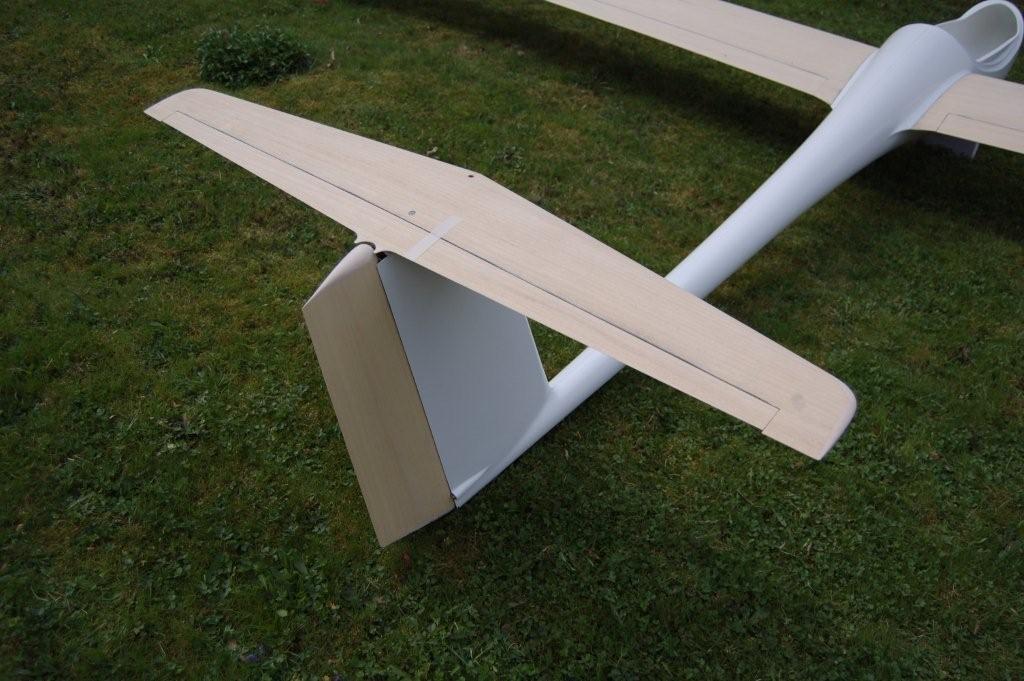

- Wings, elevator and rudder are obechi sheeted, carbon reinforced, ready to cover

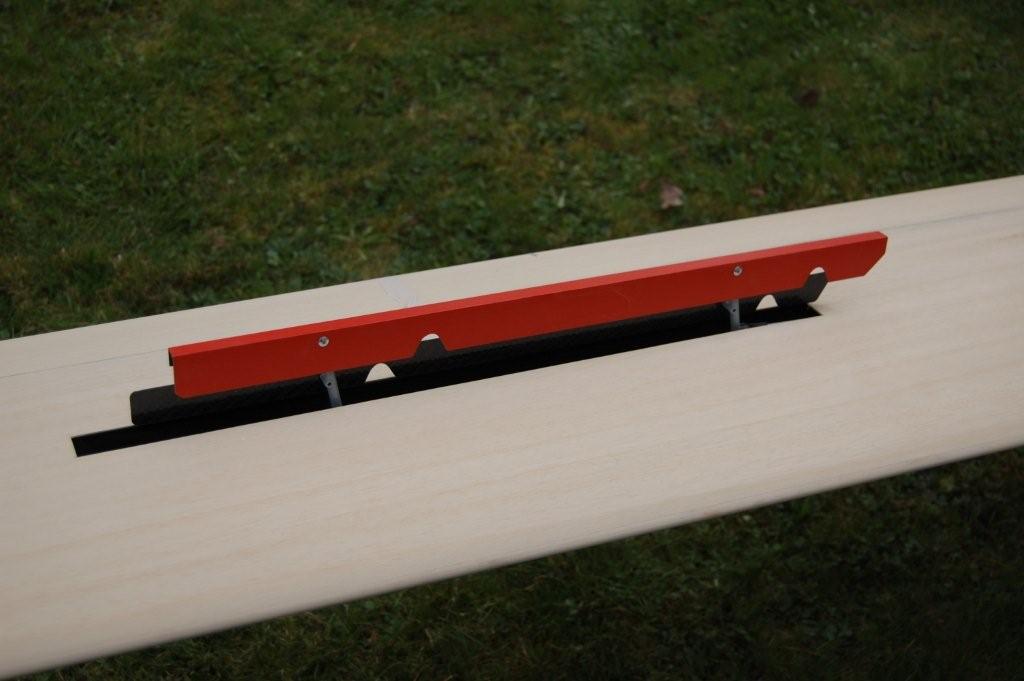

- Extra large airbrakes installed.
- Landing gear installed
- Canopy and frame, hinge system supplied like full size.

Radio requirements are four high torque servos for the ailerons, four for the flaps and two additional std servos for the airbrakes. Three more high torque servos for the elevator, rudder and retract. An additional servo might be installed for aerotow.

ASG-29, 7.5 - 9.0 m, ARC kit, price: 7900.00U$
ASG-29-E,
with self launch system available, price: inquiry
