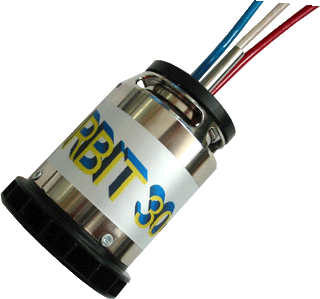

Orbit 30

Orbit 30-10 Orbit 30-12 Orbit 30-14 Dimensions and weight



Some new way are used here to produce these new outrunner brushless motors. They decided not to do same but better, and the result are incredibly efficient Orbit brushless motors. These motor feature triple bearing assembly and balancing of each element to avoid any move of the rotating cage which would allow loss of efficiency. Highest quality magnet are use in conjunction with the material used in the HP 355, which lead to huge torque and efficiency.

Compared to some other commercial outrunner these motor achieve at least 10-15% better efficiency, which is amazing.

The Orbit 30 comes standard with integral active cooling fan.



Orbit 30-10 (Kv: 780 rpm/V)
Propeller Voltage in V Current in A RPM 1/min Efficiency %  Thrust in N Thrust in oz
APC E 12x10" 10,7 39,1 7190 85 14,2 50
  12,7 53,4 8290 82.5 19,6 69
APC E 13 x 10 10,4 49,2 6750 83 16,7 59
APC E 14 x 10 8.2 35,7 5515 85 14.7 52
  10,2 52,5 6580 82.5 21.1 74
APC E 15 x 10" 8 41,6 5275 84.5 17,7 62
  10.1 61,1 6270 79 25,5 90
Cam prop 14.5 x 4  12 32,3 8360 85,5 23,1 81
  14.2 42,4 9670 84.5 30,4 107
  16,3 53,8 10830 84 40.2 141
  17,5 59,8 11360 83 44.6 157
Cam Prop 14x9,5" fold 10,5 45,4 6870 84 25,0 88
  12,5 60,9 7950 80 33,8 119
Cam Prop 15x9,5" fold 8.2 33,8 5545 85.5 16.2 57
  10,4 48,3 6740 83.5 24,0 84
  12,4 63,4 7810 79 32,4 1114

Orbit 30-12 (Kv: 650 rpm/V)
Propeller Voltage in V Current in A RPM 1/min Efficiency %  Thrust in N Thrust in oz
APC E 13x10" 10,7 34,5 6060 83,5 13,2 46
  12,9 45,9 7045 83 18,1 64
  14,9 57,0 7770 81 23,5 83
APC E 14x10" 10,6 35,8 5970 83 17,7 62
  12,8 49,3 6875 82 23,1 81
  14,8 63,7 7655 79 28,4 100
APC E 15x10" 10,5 41,9 5730 81,5 21,1 74
  12,7 57,1 6550 78 28,0 99
Cam Prop 14,5x4" 16,8 36,2 9685 86 30,4 107
  18,4 41,7 10420 86 36,3 128
  20,2 49,4 11270 84,5 43,2 152
  22,4 57,4 12070 83 50,0 176
Cam Prop 14x9,5"Kla 10,8 31,2 6200 84,5 20,1 71
  13 42,2 7210 84 27,5 97
  15,1 53,8 8100 82 35,3 124
Cam Prop 15x9,5"Klapp 10,7 33,8 6090 84 19,6 69
  12,9 44,7 7100 83 26,5 93
  15 56,2 8000 81 33,8 119



Orbit 30-14 (Kv: 550 rpm/V)
Propeller Voltage in V Current in A RPM 1/min Efficiency %  Thrust in N
Thrust in oz
APC E 13x10" 14,4 36,0 6750 84,5 16,7 59
  16,6 44,8 7575 83 21,1 74
18,8 55,8 8375 79 26,5 93
APC E 14x10" 13,2 33,5 6200 83 19,1 67
14,3 38,1 6605 84 21,6 76
  16,4 49,3 7350 81 26,5 93
APC E 15x10" 11,9 33,7 5560 83 19,6 69
  14,1 44,9 6340 81,5 26,0 98
16,2 56,5 7000 79 31,9 112
Cam Prop 14,5x4" 21 33,3 10100 85,5 33,8 119
22,9 38,0 10830 86,5 39,2 138
  25 44,4 11620 85 45,6 161
Cam Prop 15x9,5"Klapp 14,4 34,6 6750 85 24,0 84
  16,6 42,7 7570 83,5 30,4 107
17,8 47,6 8020 82,5 33,8 119
Cam Prop 17x10"Kl -5 14 49,2 6090 79 36,8 130



Dimensions and weight

Orbit 30 (305 g, 10.7 oz)
