A
name that not only reflects a new trend but also a new concept in
brushless motor design. The concept is actually not new, but with
high pole rotor (14 poles) huge torque can be achieved. In
conjunction with better winding technique, overall efficiency has been
improved. These motors are very small,
weights only 75 g including prop adapter for the 20 & 24, and are primarily intended for light aerobatic
airplanes and parkflyers.
Freestyle 20
Propeller |
Voltage
in V |
Current
in A |
RPM
1/min |
Efficiency
% |
Thrust oz |
slim
Prop 8x6" |
6,1 |
8,9 |
7280 |
86 |
11.5 |
|
7,3 |
11,3 |
8250 |
85 |
14.8 |
|
8,5 |
13,6 |
9100 |
83,5 |
18 |
|
9,6 |
16 |
9810 |
84 |
21 |
|
10,8 |
18,4 |
10570 |
80,5 |
24 |
slim
Prop 9x6" |
6,0 |
13,1 |
6380 |
79,5 |
14.2 |
|
7,1 |
16,3 |
7040 |
76,5 |
17 |
APC
SLOW FLY 8x3,8" |
6,1 |
7 |
7730 |
88 |
13 |
|
7,3 |
9,1 |
8770 |
87 |
16.8 |
|
8,5 |
11,3 |
9630 |
86,5 |
20.3 |
|
9,7 |
13,7 |
10500 |
85,5 |
24 |
|
10,9 |
16 |
11120 |
82 |
27 |
APC
SLOW FLY 8x6" |
6,0 |
10,3 |
6860 |
84 |
10.2 |
|
7,2 |
13,1 |
7720 |
82 |
13.1 |
|
8,4 |
16,1 |
8460 |
80 |
80 |
|
9,5 |
18,8 |
9040 |
78,5 |
15.7 |
APC
SLOW FLY 9x4,7" |
6,1 |
8,8 |
7300 |
86 |
18.7 |
|
7,3 |
11,1 |
8180 |
85 |
23.5 |
|
8,5 |
13,4 |
9140 |
84 |
29.2 |
|
9,6 |
15,7 |
9730 |
84,5 |
33.1 |
|
10,8 |
17,7 |
10730 |
80,5 |
40,3 |
APC
SLOW FLY 10x4,7" |
6 |
12,7 |
6440 |
80 |
22 |
|
7,1 |
16,1 |
7040 |
77 |
26.5 |
Freestyle 24
Propeller |
Voltage in V |
Current in A |
RPM 1/min |
Efficiency % |
Thrust oz |
slim Prop 8x6" |
6,2 |
5,3 |
6090 |
87 |
8.1 |
|
7,5 |
6,8 |
6880 |
85,5 |
10.4 |
|
8,6 |
8,2 |
7680 |
84,5 |
13 |
|
9,8 |
9,7 |
8400 |
82 |
15.5 |
|
11,1 |
11,1 |
9090 |
80 |
18 |
slim Prop 9x6" |
6,1 |
7,8 |
5320 |
80,5 |
9.9 |
|
7,3 |
9,6 |
5940 |
78,5 |
12.3 |
|
8,5 |
11,6 |
6580 |
74,5 |
15.2 |
|
9,7 |
13,6 |
7040 |
71 |
17 |
APC SLOW FLY 8x3,8" |
6,3 |
3,8 |
6600 |
88 |
9.6 |
|
7,5 |
5,2 |
7380 |
88 |
11.8 |
|
8,7 |
6,7 |
8230 |
87,5 |
14.9 |
|
10,0 |
8,1 |
9080 |
85 |
18 |
APC SLOW FLY 8x6" |
6,2 |
6,1 |
5810 |
84,5 |
7.4 |
|
7,4 |
7,7 |
6680 |
83,5 |
9.8 |
|
8,6 |
9,5 |
7340 |
81,5 |
81,5 |
|
9,8 |
11,3 |
7850 |
77 |
11.8 |
|
11,1 |
13,1 |
8460 |
74 |
15.7 |
APC SLOW FLY
9x4,7" |
6,2 |
5,2 |
5920 |
87 |
12.3 |
|
7,7 |
6,3 |
7080 |
86,5 |
17.6 |
|
8,6 |
8 |
7280 |
84,5 |
18,5 |
|
9,8 |
9,5 |
8470 |
82 |
25 |
|
11,2 |
10,9 |
9240 |
81 |
30 |
APC SLOW FLY 10x4,7" |
6,1 |
7,3 |
5460 |
82 |
16 |
|
7,4 |
9,4 |
6190 |
79,5 |
20.5 |
|
8,5 |
11,5 |
6630 |
75 |
23.5 |
|
9,7 |
13,6 |
7040 |
71 |
26.6 |

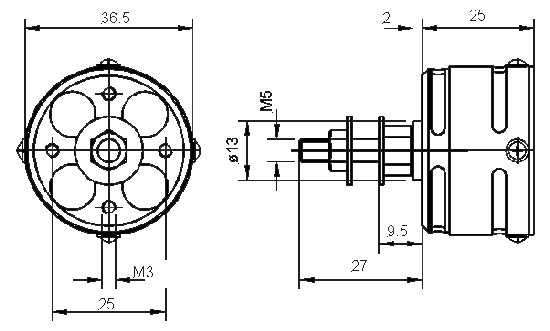

Dimensions and weight
Freestyle 20, 24 (75 g)
|
