Actro motors

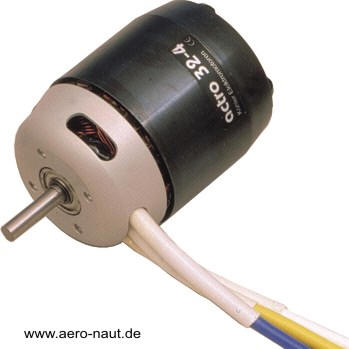

  actro 32 max

ACTRO 32 heli motors are now available in more powerful versions with even lower internal resistance, enabling them to handle higher currents and deliver maximum performance. This is achieved by the adoption of a more sophisticated winding pattern with a higher copper fill ratio.

The heli range of actro 32 motors can be installed in the model just like conventional designs, i.e. the power plant is simply attached from the front using two of four M3 screws. The motor cables exit the motor at right-angles to the motor shaft; an arrangement which offers advantages in many model helicopters.

This new design allows you to save about 30 - 40 g compared to normal actro motors when you consider that an additional hub is not required. The motors feature 5 mm and 8 mm shaft steps; internally the shaft is of 6 mm diameter, and runs in heavy-duty ball races designed to absorb the gearbox forces encountered in modern helicopters and 8 mm high-performance machines. actro heli motors are available with 3, 4 and 5 winds.

Specifications:
Motor rpm [1/Vmin] shaft dia
(mm)
cells wing cells helicopter x length [mm] [g] Price Sale
US $
24-3 Heli 740 5.0 12 - 20 16 - 24 50 x 58 350 269.00
24-4 Heli 570 5.0 14 - 24 24 - 30 50 x 58 350 269.00
24-4 Heli 570 8.0 14 - 24 24 - 30 50 x 58 350 269.00
24-5 Heli 435 5.0 16 - 28 28 - 32 50 x 58 350 269.00
24-5 Heli 435 8.0 16 - 28 28 - 32 50 x 58 350 269.00
32-3 Heli Max 415  5.0 16 - 30 28 - 32 50 x 69 430 345.00
32-3 Heli Max 415 8.0 16 - 30 28 - 32 50 x 69 430 345.00
32-4 Heli Max 330 5.0 20 - 32 30 - 32 50 x 69 430 345.00 259.00
32-4 Heli Max 330 8.0 20 - 32 30 - 32 50 x 69 430 345.00
32-3 gold 560   14 - 26 28 - 32 49,5 x 63,5 400
32-4 gold 450   16 - 30 28 - 32 49,5 x 63,5 400
32-5 gold 340   20 - 32 30 - 32 49,5 x 63,5 400
40-4 320   20 - 32 28 - 32 50 x 77 520
40-5 255   24 - 32 - 50 x 77 520
40-6 210   24 - 32 - 50 x 77 520
