Specialty Brushless


Specialty Brushless


XPower XC3223/10 LS XPower XC2205/24

Compact 380 brusless DIY brushless outrunner
Compact 700 brusless

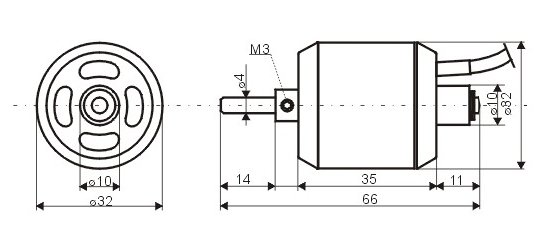

XPower XC3223/10 LS
This is a special long shaft motor to convert, some of our semi-scale glider, without cutting the nose off. It is particularly well suited for our Grob-103C and the mdm-1 Fox.

With the in the kit included bulkhead, motor install at the right place, allowing the shaft to exit the narrow fuselage.

XPower XC3223/10 LS price: 85.00U$

To complete the assembly you will require our special short yoke and set of folding blades:

  20mm +5 special yoke price: 14.50U$

  XPower FOLDING PROP 13x6 : 7.95U$

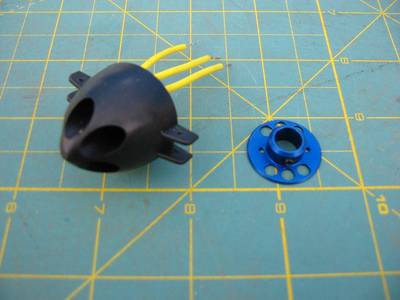

HCS Compact 380 brushless motors:

This motor was designed for for small, light  gliders in mind. It's unique design (motor is built into the spinner) brings the weight most up front and gives ideal cooling to the motor.

Standard blades used are Cam 6 x 3 and Cam 7.5 x 4. For limited motor run competition, blades of 8 x 4.5 (15sec.) and 9 x 5 (5sec.) can be used, though only for short burst (5-15 sec.). The larger blades require some fitting since the yoke has a width of 5mm and these blades are 6mm.

Its light weight 29.3 g (1oz including spinner and mount) and compact design, leave a lot of room in these tiny fuselage of the light hlg or dlg.
HCS Compact 380, Price: 69.00U$

HCS C Compact 380 Specs
Voltage range 2-3x LiPol
RPM per Volt 1770 RPM/V
Max. efficiency (%) 77 %
Max. loading 9 A/30s
No load current / 9V 0,8 A
Dimensions 43x30 mm
Shaft diameter 3 mm
Weight 30 g
Recommended model weight 300-600 g
Recommended propeller range 6x3; 7.5x4
8x4.5

Propeller Battery Volt Current RPM Watt
6 x 3 2S 7.79 6.2 10'230 48
6 x 3 3S 10.53 8.7 12'330 92
7.5 x 4 2S 7.58 8.3 8475 63
7.5 x 4 3S 10.41 11.8 10350 123

HCS Compact 700 brushless motors:

This motor is slightly larger for glider up to 2-3 lbs. It's unique design (motor is built into the spinner) brings the weight most up front and gives ideal cooling to the motor.

Standard blades used are Cam 6 x 3 and Cam 7.5 x 4. For limited motor run competition, blades of 8 x 4.5 and 9 x 5 can be used, though only for short burst (5-15 sec.). The larger blades require some fitting since the yoke has a width of 5mm and these blades are 6mm.

Its light weight 58 g (2 oz including spinner and mount) and compact design, leave a lot of room in these tiny fuselage of the light 2m glider.
HCS Compact 700, Price: 79.00U$

HCS C Compact 380 Specs
Voltage range 2-3x LiPol
RPM per Volt 1485 RPM/V
Max. efficiency (%) 75 %
Max. loading 20 A/30s
No load current / 9V 0,56 A
Dimensions 50x40 mm
Shaft diameter 4 mm
Weight 58 g
Recommended model
weight
600-1200 g
Recommended propeller range 8x4.5; 9x5;
10x8; 11x8
Propeller Battery Volt Current RPM Watt
8 x 4.5 2S 7.8 4.2 6210 32
8 x 4.5 3S 11.4 7.4 8565 85
9 x 5 2S 7.71 5.5 5835 42
9 x 5 3S 11.24 9.7 7965 109
10 x 8 2S 7.3 10 4815 73
10 x 8 3S 10.39 16 6000 166
11 x 8 2S 7.26 10.6 4485 77
11 x 8 3S 10.32 17.3 5700 178

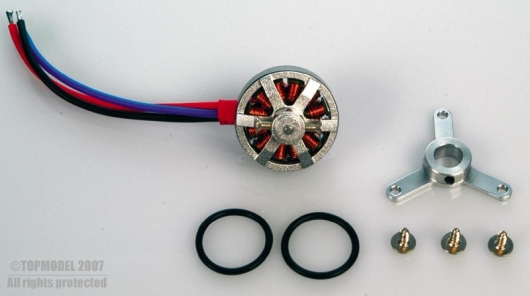

 XPower XC2205/24

This is one of the smallest outrunner we carry, and spin 4 x 4 GWS props, which is ideal for our Crobe micro-glider.

Xpower XC2205/24 Specs
Voltage range 1-2x LiPol
RPM per Volt 2200 RPM/V
Max. loading 7 A/30s
Dimensions 43x30 mm
Weight 15 g
Recommended model weight 100 g
Dimensions 22x23mm
Recommended propeller range  4 x 4
Measurement data;
prop: GWS 4x4"
Esc Easy 7
Battery AP300 2S1P
Rpm: 13000t/mn,  Current draw: 3A
XPower XC2205/24, price: 49.00U$
Comes complete with radial mount and prop saver


DIY (Do it yourself) brusless motor kits:

These kits feature high quality machined parts with high grade bearings and magnets. They require only winding and final assembly, and they will allow you to assemble these 34g motor to the specification you want, more torque or more rpm just choose the winding from the chart in the assembly manual.

Description Price U$ Sale U$
Revo DIY Outrunners => Front/rear mount  31.00 27.00
Revo DIY Outrunners => Stick mount  N/A


DIY 300 plus  31.00 27.00

Revo DIY preassembled (3 wire/12 turn) stick mount 59.00 55.00
