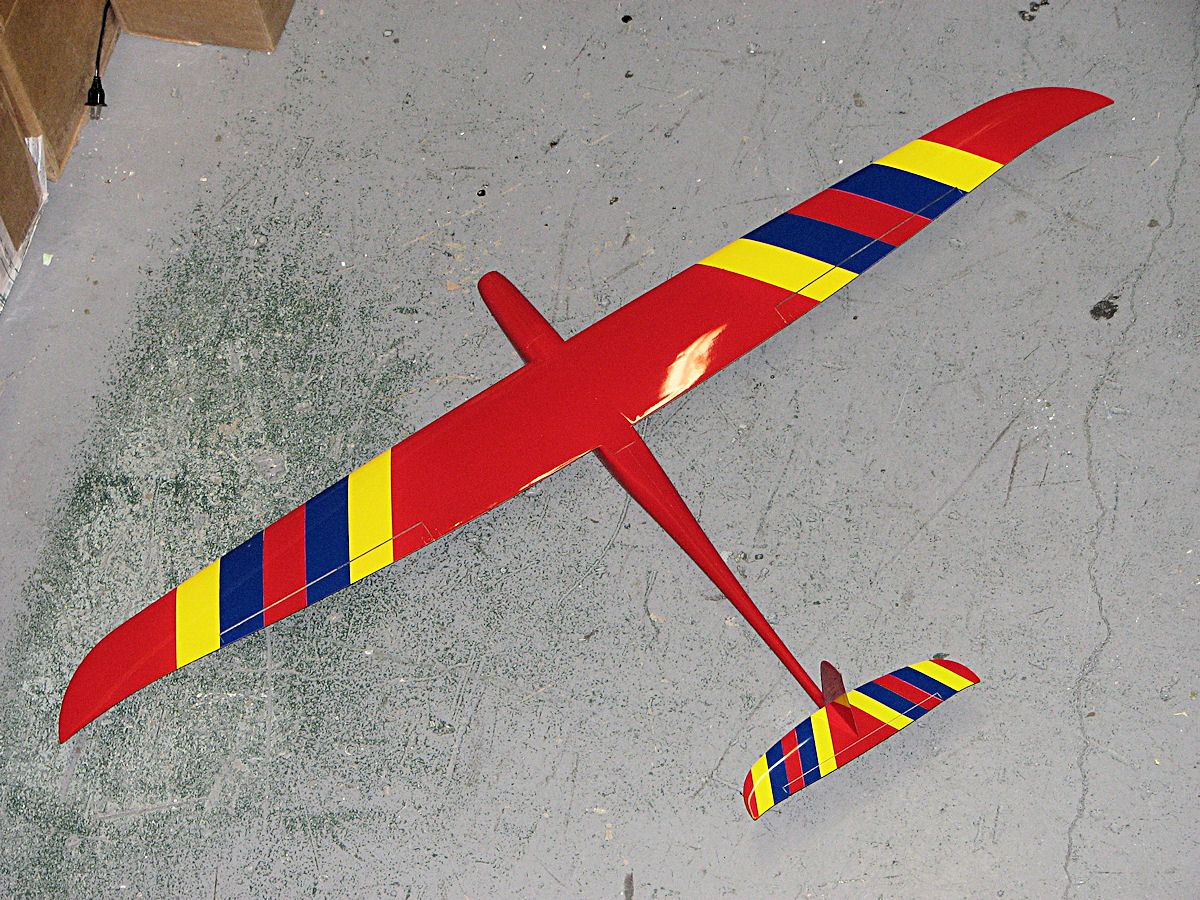

Jibe II

Specifications:


Wing Span: 1.37 m (53.9")
Wing Area: 14.38 dm2 (222.8 sq. in.)
Total Area: 15.1 dm2 (234.3 sq. in.)
Wing Airfoil: MS 1.6-7.8
Wing Loading: 75 g/dm2 (24.5 oz/sq. ft.)
Flying Weight: 1000-1085 g (36.5 oz)
Radio: Sub-micro servos and micro receiver
Motor Mega 16/15/3 to Mega F5D



Designed by F5D freak F. Lorrain and I. Wautelet, in Belgium, the Jibe II (JČ) is an evolution of the earlier J1 with a similar wing shape but bigger wingspan, higher aspect ratio and a new airfoil. The fuselage design is completely new with a much smaller frontal area and a more square like section. Another obvious new feature of the J2 is it's cross tail which has been designed for increased robustness and easy perfect positioning during the assembly.

In 2008 the JibeČ has received a layup update to adapt the airframe to the new F5D LiPo rules. The wing is now built with a heavy and extremely strong carbon skin which gives it extreme stiffness for even faster flight and crisper controls. The fuselage comes in a composite Kevlar/carbon lay-up

Download the available JibeČ build manual here

Complete power setup available upon request

F5D Jibe II, price:

See Jibe2 3views here
