Chargers
Schulze Next Generation Schulze Next Gen. Acces. Schulze LiPoCard
Schulze LiPo balancer Orbit electronic APACHE SMART CHARGER
Schulze charger access. Orbit LiPo checker Apache LiPo balancer
  Hyperion Charger Turnigy Charger

New drastically lowered prices on Schulze chargers!

Schulze charger are top of the line products, quality and reliability. Click on picture for details.

***Need to update your isl series charger, find more about here.***

Now available: a whole new line of chargers: Next GenerationII the ultimate all purpose charger.

Model Particularity

Price $ US

Sale $ US


next-14-350-eco Universal charger / discharger
for e.g.
two times 1-36 Nickel cells
or two times 1-14 Lit cells
539.00 509.00 nextGeneration
Two build in balancer groups for up to 7s Lithium cells each
Charge current of output 1 and 2: up to 7 A each
Charge power at 24 V input; output 1 and 2: 200 W each
Charge power at 12 V input; output 1 and 2: 175 W each

Special functions: Internal parallel connection of the 2 charging outputs. (charge output 2 is disabled).

Double power (up to 400 W). Double charge current (14 A) Balancing of up to 14s Lithium cells.
Charge curve memory (4 MByte Flash memory - non volatile).
Deep blue case, transparent. Full / empty display by blue LED chain (which shines through the case).
Battery buffered real time clock.
(without "nextConn-Set-II", expandable)
... relatively close to "High-End"...


Accessories for Next Generation chargers

Model Particularity

Price $ US

Sale $ US

USB-adapt-5V-SIO
USB-adapt-uni
Interface adaptor
to connect to the 5 V-SIO connector of the nextGeneration series as well as to the LiPoCard2
also to the u-force speed controller
and to the prog-adapt-alpha.
Accessories not included:
USB-driver (download here)
USB-cable
37.00 33.00
USB-adapt-5V-SIO-Set
USB-adapt-uni-Set
Interface adaptor
to connect to the 5 V-SIO connector of the nextGeneration series as well as to the LiPoCard2
also to the u-force speed controller and to the prog-adapt-alpha.
Accessories included:
USB-stick with 128 MB
USB-driver on the stick.
USB-cable to connect to the PC
59.00 55.00

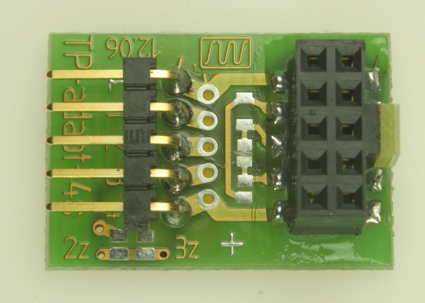

BalancerAdaptor-Ko4
BalAd-Ko4
Balancing adapter PCB with terminal pins in 2.54 mm spacing. For 2s, 3s, 4s cells.
Hint: BalCab10-Verl is necessary
14.50 13.50
BalancerAdaptor-TP4
BalAd-TP4
Balancing adapter PCB with terminal pins in 2.00 mm spacing. For 2s, 3s, 4s cells.
Hint: BalCab10-Verl is necessary
14.50 13.50

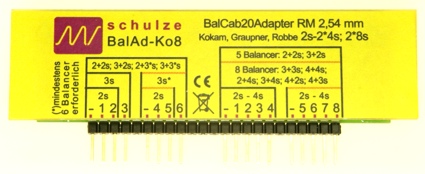

BalancerAdaptor-Ko8
BalAd-Ko8
Balancing adapter PCB.
Pitch 2.54 mm.
Up to 8 balancers/cells.
23.50 22.25

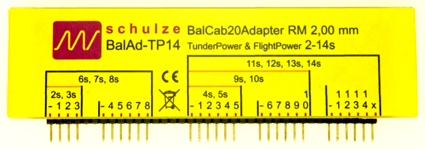

BalancerAdaptors-TP14
BalAd-TP14
Balancing adapter PCB.
Pitch 2.00 mm.
Up to 14 balancers/cells
23.50 22.25

BalAd-Set7
set of 4 balancing adapter PCBs
(BalAd-EH7, -XH7, -PQ7, -TP7 s.u.)
for 2s ... 7s battery packs.
26.95

BalAd-SE4x7
Balancing adapter which is to be plugged in into the balancing connector in the middle of the nextGeneration II series.
Includes
2 EH male plugs for our BalAd-XX7 adapters
or a direct connection (left adjusted) of
2s ... 7s Graupner/Robbe/MPX batteries.
and 2 BalCab20 male plugs for two Schulze (2s ...) 5s - 7s batteries
23.50

BalAd-SE4-7-14
Balancing adapter which is to be plugged in into the balancing connector in the middle of the nextGeneration II series.
Includes
2 EH male plugs for our BalAd-XX7 adapters
or a direct connection (left adjusted) of
2s ... 7s Graupner/Robbe/MPX batteries.
and 2 BalCab10 male plugs for 2 Schulze 2s - 4s batteries and 1 BalCab20 male plug for a Schulze 2s - 14 s battery
(Hint: When the number of cells are 8s or higher and plugged in to the BalCab20 male socket, then the second balancing group of the charger (7s; standard for the battery 2 output) is assigned to the battery 1 output, so that - to avoid short circuits - the remaining balancing connectors must be unused).
23.50

BalAd-TP7
Balancing adapter printed circuit board with male plugs.
Pin spacing is 2.00 mm
Fitting for 2s ... 7s battery packs by e.g.
ThunderPower, TopFuel, FlightPower, ...
9.50
Model Particularity

Price $ US

Sale $ US


BalCab10 3 balancer cable kits, 10 pins connectors, for packs up to 4 cells 8.50 7.50
BalCab20 3 balancer cable kits, 20 pins connectors, for packs up to 14 cells 10.50 9.25
BalCab10-verl Extension cable for 10 pin connectors.
To connect Schulze LiPoPerfekt
2s ... 4s battery packs to the LiPoCard resp. the LiPoBalancer.
11.00 9.75
BalCab20-verl Extension cable for 20 pin connectors.
To connect Schulze LiPoPerfekt
5s ... 14s battery packs to the LiPoBalancer.
14.75 12.75

LiPoCard: charger with integral balancer

LiPoCard III The ultimate "breast pocket"-charger for Li-Poly and Li-Ion batteries. Up to 4 cells. Built-in true balancers and Serial port. 109.00 82.00 LiPoCard II
BalCab10 3 balancer cable kits, for packs up to 4 cells 8.50 7.50

Charger accessories

Model Particularity

Price $ US

Sale $ US


charging cables 1 pair, 2.5mm2, 75cm, red&black, safety-plug with 4mm protective slide-sleeve 14.00 12.50
isl 8- elast- 0.33 external discharge resistor (to 7cells) with fan 0.33Ohm/300W, about 85x85x105mm 105.00 97.00 i8-elast
isl 8- elast- 0.66 external discharge resistor (to 12cells) with fan 0.66Ohm/300W, about 85x85x105mm 105.00 97.00

Orbit makes some of the smartest charger at very affordable price, great charging algorithm. Click on model for details.



Charger model Price $ US Sale $ US
POCKETLADER-COMBO, Mini charger with balancer, up to 65W, for NiMh/NiCd- and Lithium-batteries (LiPo/LiFP-A123) 205.00 199.00
Pocketlader, Mini charger, up to 4 A, 1-12(14) NiMh/NiCd- or 1-5s Lithium Polymer(LiPo)-cells
User manual, click here.
129.00 N/A
Pocketlader USB interface,
SIO PC interface for the evaluation of charge data and for firmware update
36.00 31.00
COMBO Adapter-L, battery adapter 20cm for POCKERLADER-COMBO 7.00 6.50
V6.5 E-Prom upgrade chip
Specify V6 or Pro and your current version
see below for procedure
19.00
LiPo checker Pro, external balancing and equalizing module [0605] 89.00 84.00
Adapter for TP packs 7.00

SIO/RS232 adapter for Lipo checker to V6 or Pro charger [0632] 16.50



Orbit V6 microlader was reviewed by Dave Robelen in Model Aviation magazine of June 2004, in his column Micro Flying.

The Microlader update 6.5 features adjustable charging voltage (CV) for the Lithium-mode (to support LiFe, A-123, etc..) and supports close loop charging with the LiPo-Checker [0605]. The Microlader PC-interface and a special adapter [0632] is needed for this function.

Update procedure:

Microlader 6.1-6.4: => update by new chip v6.5
Microlader PRO 6.1-6.4: => update by new chip PROv6.5
Microlader 6.0: => update 6.A5 by Orbit only, send charger in. ~65.00U$
Microlader 5.0: => update 6.A5 by Orbit only, send charger in. ~85.00U$
Microlader PRO/6.0: => update 6.A5 by Orbit only, send charger in. ~64.00U$


 Hyperion CHARGER AND BALANCER

Hyperion HP-EOS-0606i Li-Poly DC Charger/Balancer, price 99.95U$
Integrated (built-in) Hyperion LBA balancer
1~6 cell Li-Poly, Li-Ion or A123 charger / balancer
1~14 cell NiCad / NiMH
1~6 cell Sealed Lead Acid
6S, 6A, 50 watts
Includes:
Input cable with Clamps
Output cable with 4mm connectors
2S~6S balancer multi adapter
HP-LBA10-HP

Turnigy CHARGER AND BALANCER



Turnigy Accucel-6 50W 5A Balancer/Charger, price: 49.00
The Turnigy Accucel 6 is an entry level balancing charger and discharger which can handle up to 6 cells and 5A. The Accucel-6 will handle LiPo/LiFe up to 6S and NiMH/NiCd up to 15S and shows individual cell voltage during charge with real time updates throughout the charge cycle. Bundled with the Accucel-6 is a bunch of input and output wires which should satisfy any charging requirement.

Input Voltage: 11~17v
Circuit power: Max Charge: 50W/Max Discharge:5W
Charge Current Range: .1~5.0A
Discharge current range: .1~1.0A
Ni-MH/NiCd cells: 1~15
Li-ion/Poly cells: 1~6
Pb battery voltage: 2~20v
Weight: 355g

This charger has a JST-XH charge plug, which makes it compatible with Zippy, HXT, Loong Max and any pack with a JST adapter.

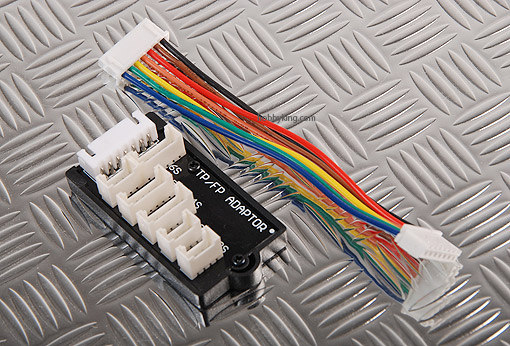

iMAX FP & TP Plug Adapter. FP & TP Plug Adapter. Connects Thunderpower and Flightpower packs to Turnigy, iMAX and GT Power chargers. Price: 19.95U$

HP & PQ Plug Adapter. Connects Enerland (Polyquest, Hyperion) packs to Turnigy, iMAX and GT Power chargers. Price: 19.95U$

EH Plug Adapter. Connects JST-EH style balance plug packs to Turnigy, iMAX and GT Power chargers. Price: 19.95U$
