Projeti

Specifications:


Wing Span: 820mm (15")
Length: 534mm (27")
Wing Area: 15.5 dm2 ( sq. in.)
Wing Airfoil: semi sym.
Wing Loading:  g/dm2 ( oz/sq. ft.)
Flying Weight: from 525 g (3.8-4.6 oz)
Radio: Sub-micro servos and micro receiver
Motor: speed 400 to
Mega 16/15/3

video1  demo flight

video2, pylon racing


Designed for intermediate to advanced pilots, will let you practice your skills in speed racing or combat. The high speed range and the very smooth handling at low speed of this very manoeuvrable Projeti will fascinate. The low weight, the refined aerodynamic and the efficient prop pusher system leads to high performance potential.
Required RC equipment is radio that has delta wing mix.

Mega-Fun that all will love!

  • Airframe in one piece molded Flexit+
  • Low part count (18 pieces) reduces build time
  • Easy handling size
  • High flight stability, as well at high and low speed
  • Ailerons and elevator are made during same moulding process and are live hinges (Elastic-Flaps)
    Bottom fin of fuselage protects prop
  • Easy and safe handlaunch, thanks finger recess in fuselage
  • Nose, fuselage top and Canopy are ready to use and made from tuff PEG-material, thermoformed and accurately CNC machined, painted to match airframes color.
  • Protective decals will completely cover the leading edge of the Projeti. This will give to all Projeti model an, besides the fabulous design it gets like this a durable surface protection.
  • The wide choices of electric motors - from the popular speed 400 to the high end brushless setup - Will make the Projeti particularly attractive to any RC electric pilot.

Key features:

Safe hand launch, thanks finger recess in fuselage

To balance model, CG is  indicated and easy to verify, by holding model upside down and holding it with fingers on marked points,

proper CG is achieved by moving battery for- or aft-

Crush resistant thermoformed parts - CNC milled and ready to install, reinforces airframe and protects RC components and ease access to radio gear.

Projeti “Star Edition”, Price: 139.00U$
Kit with white moulded foam, Blue Star-Edition-Decals, no motor

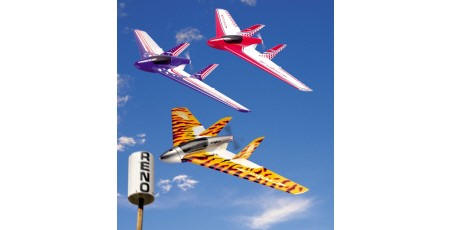

Projeti “Reno Racer”, Price: 139.00U$
Kit with white moulded foam, Red Reno-Edition or Tiger Decals, no motor

Projeti Tiger, Price: 139.00U$
Kit with white moulded foam, Red Reno-Edition or Tiger Decals, no motor

Optionnal accessories:

  RC gear -Set
2 HS 65HB, Lepton 6 Rx, specify CH #
  Servos-only
2 HS 65HB
PROJETI FREEPower-Brushless-Setup

Mega 16/15/3 + prop adapter + prop.
The  ultimate high performance setup will swing an APC 4,7 x 4,7“ Prop and  you'll get Jet Feeling with Brushless-Projeti!

A 40 speed controller

Battery TP2170 3S
