Shadow

Specifications:


Wing Span: 3.65 m (144")
Wing Area: 73 dm2 (1131 sq. in.)
Wing Airfoil: HN 507M1
Wing Loading: 25 - 31 g/dm2 (8 - 10 oz/sq. ft.)
Flying Weight: 1.9 - 2.2 kg (67 - 78 oz)
Radio: Micro servos in the wings and mini servos or regular equipment in the fuselage

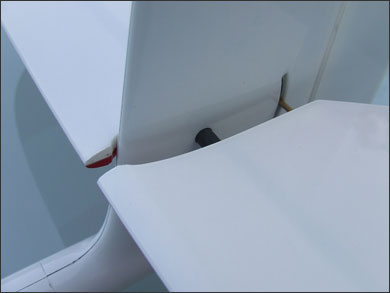

Shadow X Tail


The Shadow is currently winning many F3J and thermal duration events over in Europe and is now our latest offering in this category.

Development was based on several successful model designs and with the latest knowledge in airfoil design. This thermal ship is now widely appreciated for its great handling and its ability to hang around. Thanks the newly designed airfoil HN507M1 from Norbert Habe, which is a pure flap airfoil, meaning that it takes in consideration of all required flap settings to provide  best performance in any flight configuration.

Construction of the Shadow follows the lightweight composite technology, with all carbon main spare, carbon D-Box for torsional stiffness. Fuselage is built from hybrid carbon/Kevlar, providing a light yet sturdy fuselage.

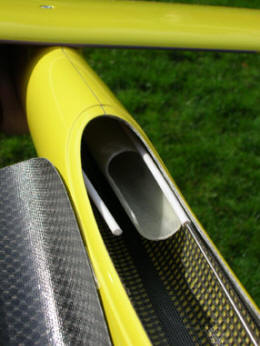

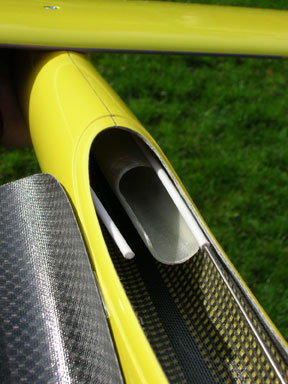

Shadow kit content is a three piece hollow moulded wing, colored in the moulds. Carbon D-box construction. Fuselage is Kevlar/carbon lay-up and of canopy type. Cross-tail version comes with a two piece removable stab, while the V-tail version has also removable stab. Ballast tube and adjustable tow hook are included. Hardware package and instructions.

Shadow, F3J, cross-tail, price: 1399.00U$, out of stock
Shadow, F3J, V-tail, price: 1399.00, out of stock

Following options and accessories are also available:

  • Custom paint scheme (lead time)
  • Servo packages (JR, Hitec), ask for pricing.
  • Pre-wired servo harness
  • Carry bags

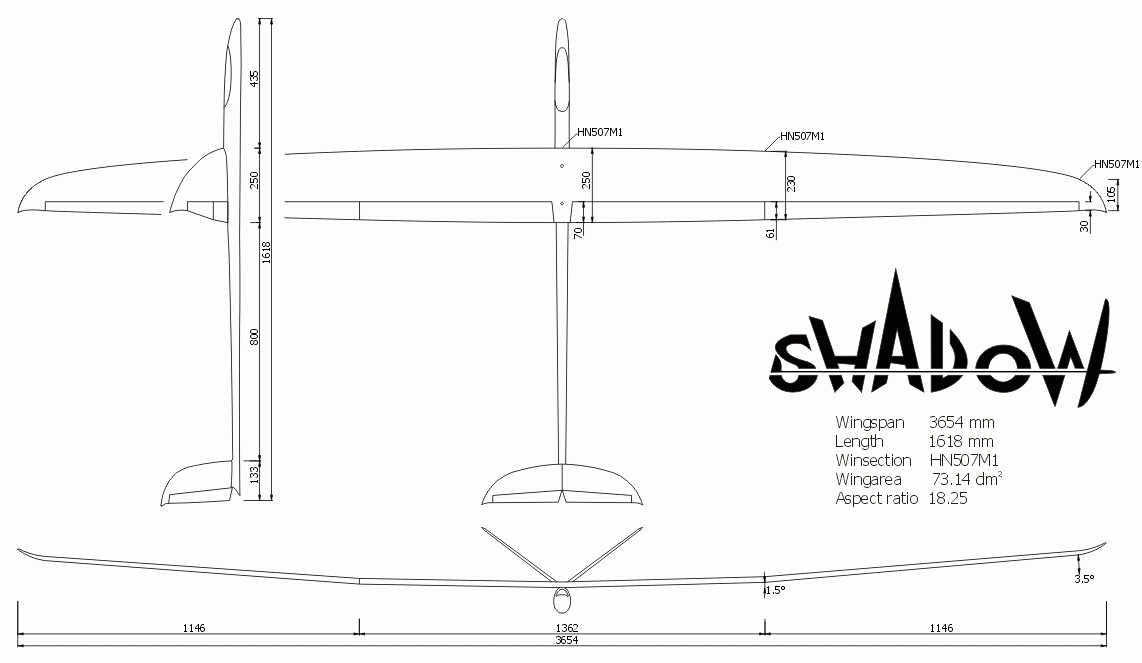

3 Views:
