Retract servo tray Z type retract servo tray
Angled clevis Retract assemblies

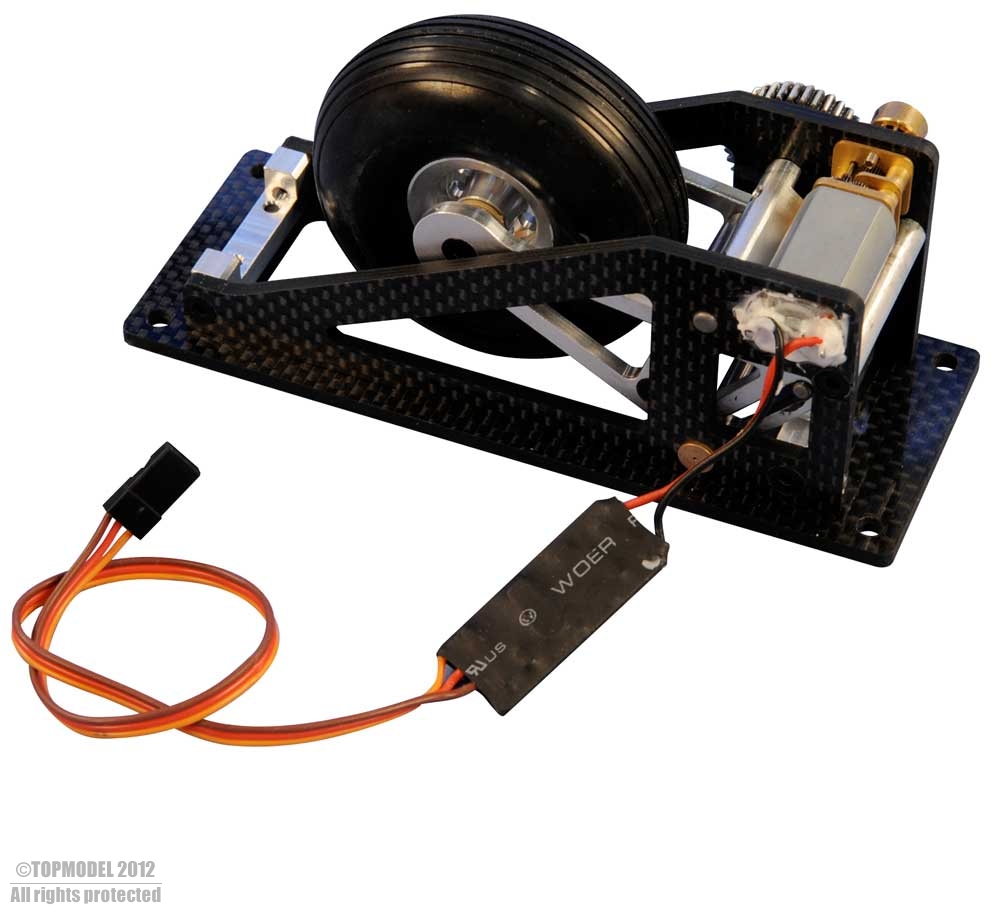

  New! Electric retract assemblies

Retract servo tray

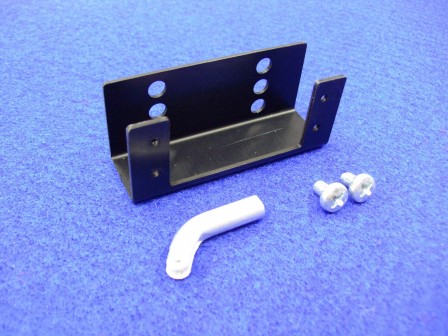

This retract servo tray will solve the issue with linkage bending and not inline linkages.

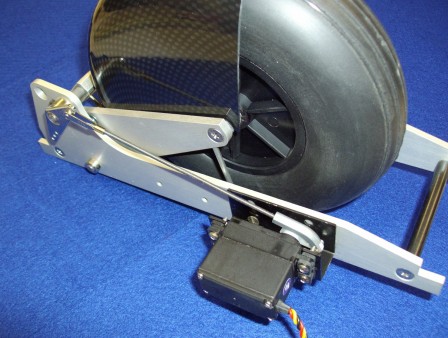

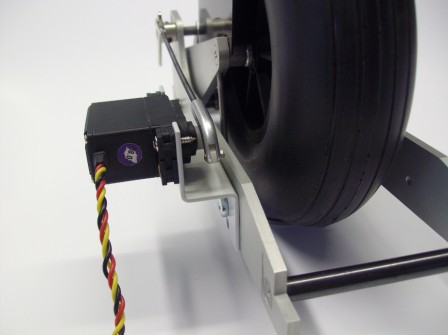

Servo can be installed flat in such a manner that the servo horn and retract horn will move in the same plane. Since it is often recommend to use a 180 deg travel, the set includes a special angled aluminum clevis to have full travel.

In many cases actually a less strong servo may be used as the whole system works much more freely.

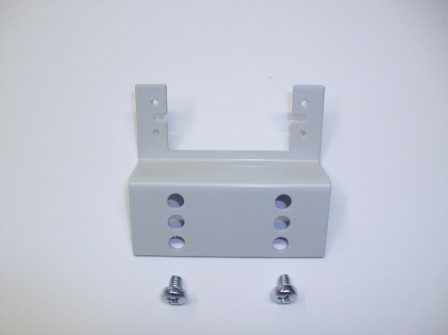

This servo tray has actually the holes premade to fit any FEMA retract.
This servo tray will anyway fit any other retract assembly.

Price: 32.00 U$

Technical specifications:

  • l/w/h 6020x25mm
  • Weight 9g
  • hard aluminum
  • set content: (1) aluminum servo tray, (1) angled clevis, Screws M4x5mm

  • "Z" type servo tray for retracts

    This retract servo tray will solve the issue with linkage bending and not inline linkages.

    Servo can be installed flat in such a manner that the servo horn and retract horn will move in the same plane. Since it is often recommend to use a 180 deg travel, the set includes a special angled aluminum clevis to have full travel.

    In many cases actually a less strong servo may be used as the whole system works much more freely.
    This servo tray has actually the holes premade to fit any FEMA retract.
    This servo tray will anyway fit any other retract assembly.

    Price: 32.00 U$

    Technical specifications:

  • l/w/h 6020x50mm
  • Weight 9g
  • hard aluminum
  • set content: (1) aluminum servo tray, (1) angled clevis, Screws M4x5mm

  • Angled aluminum clevis

    How often das it happen that you get a soft control when using a ball link assembly?

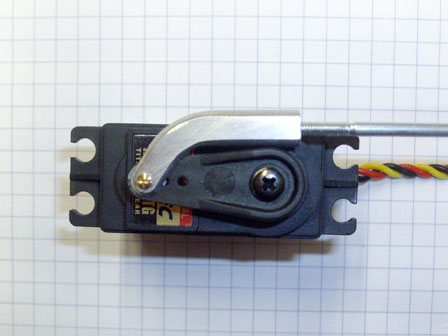

    With this angled aluminum clevis you will get a very rigid inline linkage because no bending will appear in a completely inline linkage assembly. Also this will allow to get a full 180 deg travel in tight space. Often required with retract, flaps or airbrakes.

    With this clevis, it is, for example, also possible to reduce the installation height for ailerons servos as there is no more need to make bends in the linkage in order to reach the control surface.                                                          Price: 22.50 U$  (2 pieces)

    Technical specifications:

  • Length 28mm
  • Thickness 6mm
  • Pin dia 1,6mm Brass
  • Weight 1,6g
  • Hard Aluminum
  • in M2.5 or M3 please specify

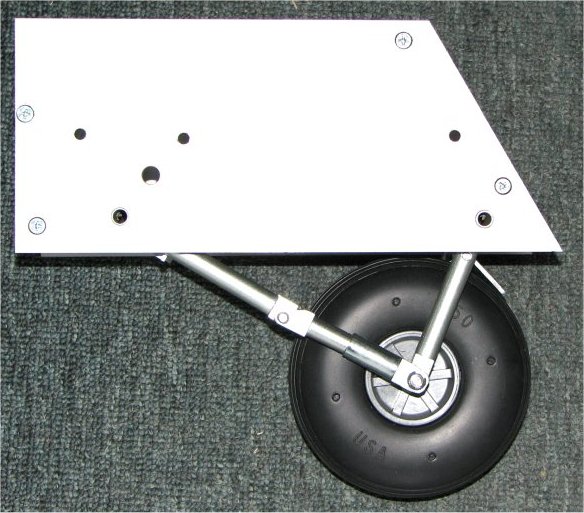

  • Retract assemblies




    Size Unit weight Suitable Model weight Price $ US

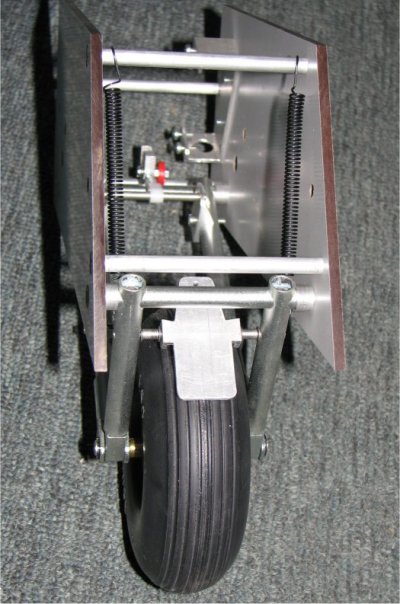

    1:6 scale retract complete with 50 mm dia. wheel 90g (3.2oz) 2 kg 63.00
    1:5 scale retract complete with 70 mm dia. wheel 178g (6.3oz) 3.5 kg 79.00
    1:4 scale retract complete with 90 mm dia. wheel 282g (10oz) 6 kg 99.00
    1:4 scale retract complete with 100 mm dia. wheel 340g (12oz) 10 kg 119.00
    1:3 scale retract complete with 125 mm dia. wheel and dual shock absorber     N/A


    1:3 scale retract complete with 115mm wheel, folding type, tubular steel, with brake and shock absorber 229.00U$

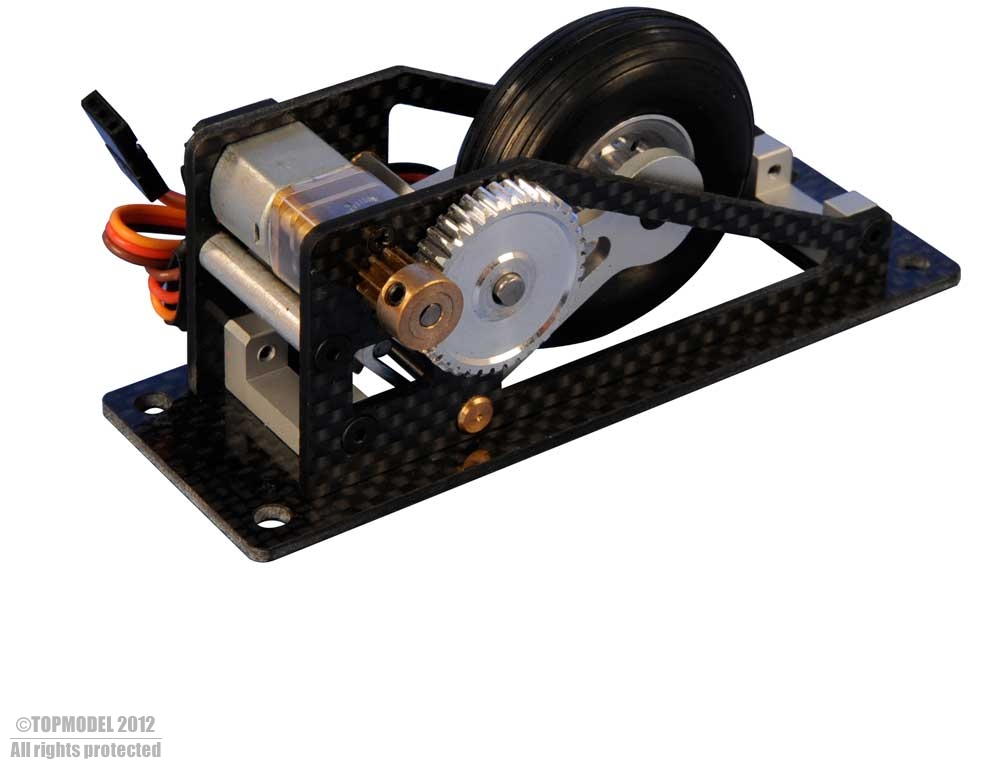

    Electric Retract assemblies

    Size Unit weight Suitable Model weight Price $ US
    1:6 scale retract complete with 45 mm dia. wheel 85g (3oz) 1.7 kg 95.00
    1:5 scale retract complete with 65 mm dia. wheel 160g (5.7oz) 3.2 kg 110.00
    1:4 scale retract complete with 90 mm dia. wheel 270g (9.5oz)  6 kg 130.00
