Pilatus Porter 4.0m

Specifications:


Wing Span: 4.0 m (158")
Length: 2.60-2.80 m (110 ")
Wing Area: 204 dm2 (22 sq. ft.)
Wing Airfoil: Naca 2412
Wing Loading: 90-110 g/dm2 (  oz/sq. ft.)
Flying Weight: 22 kg (48 lbs)
Radio: Power servos and reg. receiver recommended

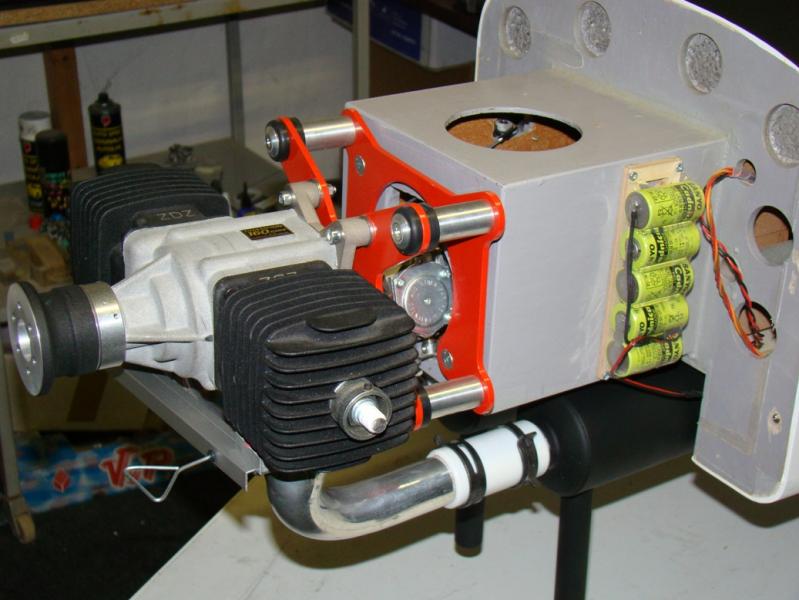

Motor: 100cc -200cc
Turbo-prop


The Pilatus Turbo Porter PC-6 is famous in the aviation world for its Short Take-off and Landing (STOL) performance on almost any type of terrain. (click on the link for more details).

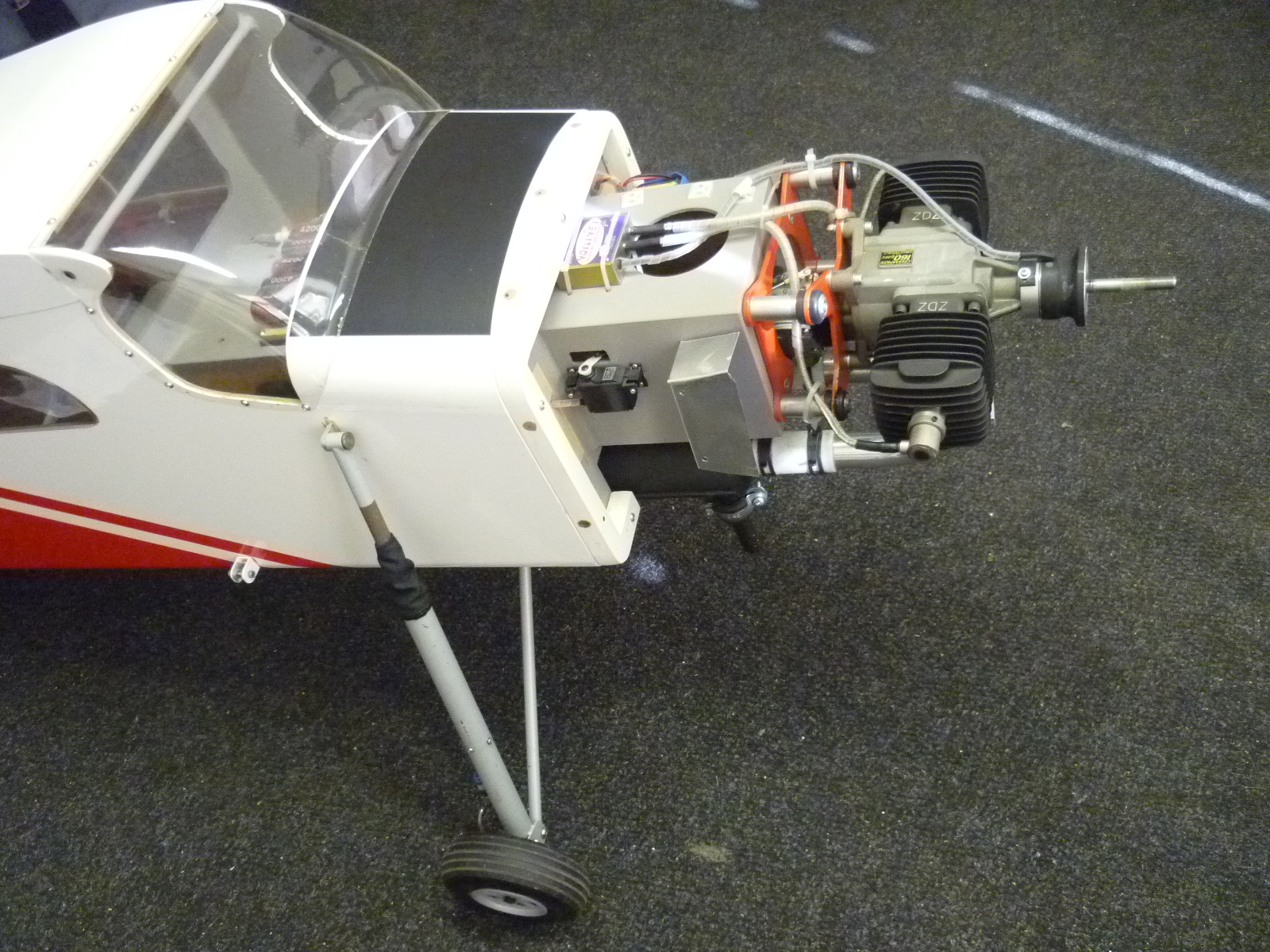

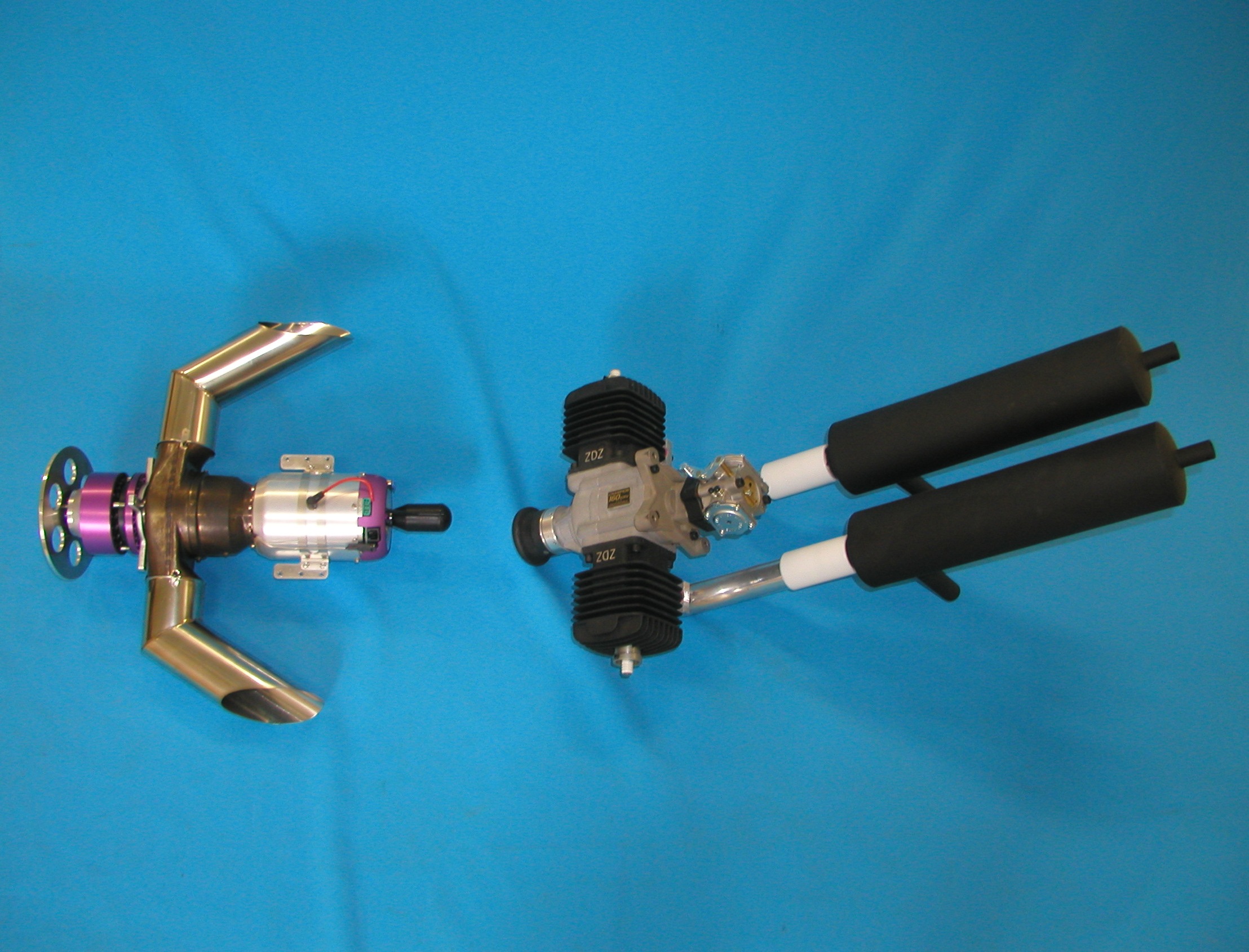

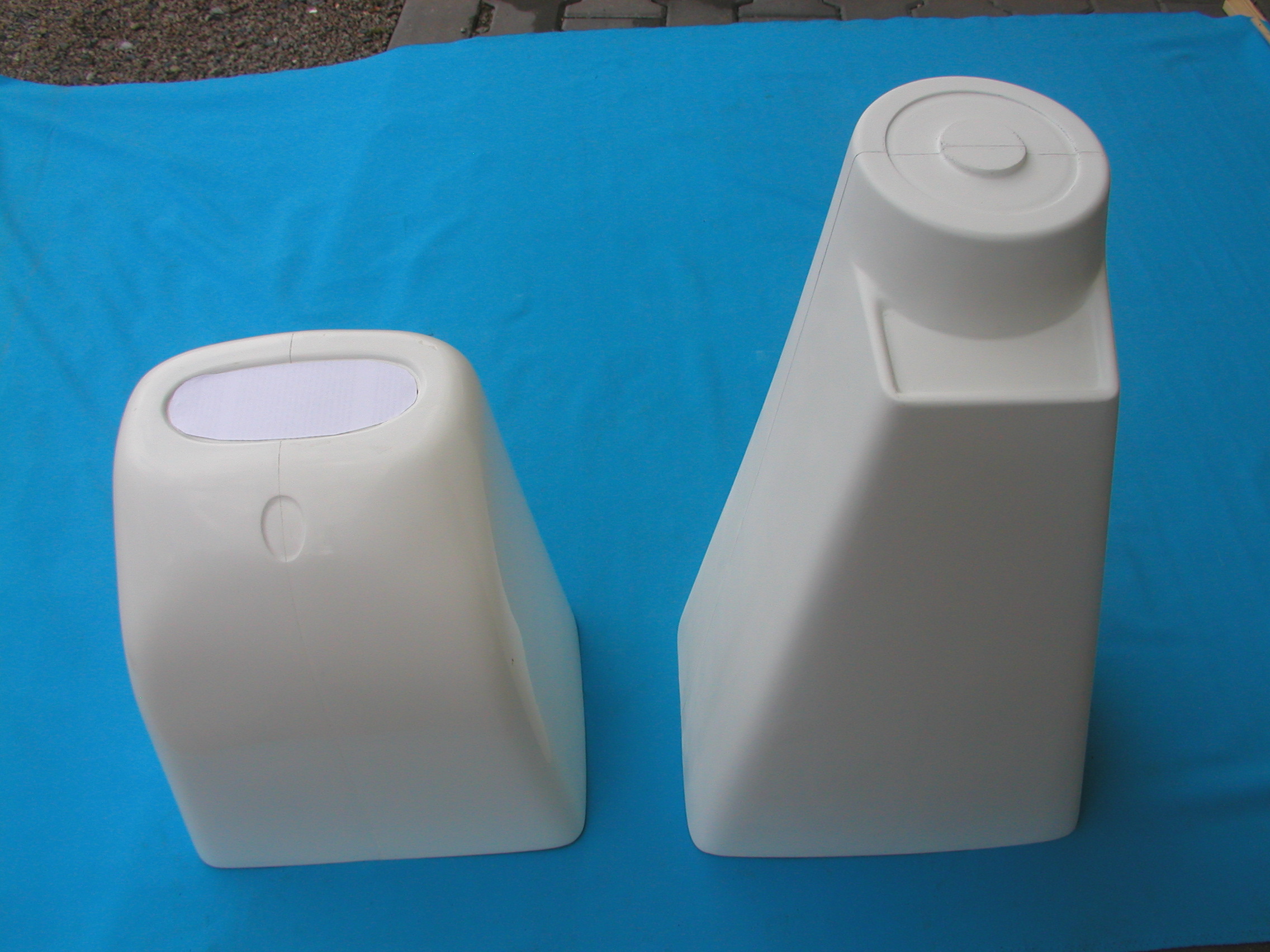

We are putting together a limited series production, of this large scale Pilatus, that will come as an ARC kit. Basically the kit is designed to be powered by a gas engine 100-200cc or with a turbo prop. For that purpose two type of cowling are available, the short for gas engines (Pilatus Porter) and and the long for the turbo prop version (Pilatus Turbo Porter PC-6).

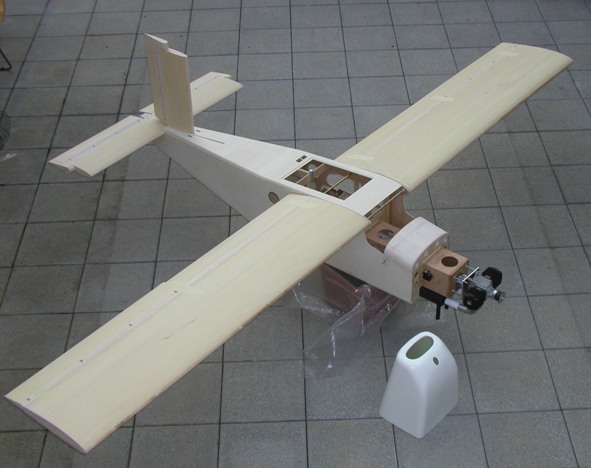

Typical construction of the airframe is all wood, balsa/ply and sheeted foam core wings. Fiberglas moulded parts like the cowling.  Some nice scale hardware is completing the kit like a spring loaded landing gear set (front and rear) with brake.



Kit content:
  • Completely built fuselage, made out of ply/balsa, sanded ready to paint/cover
  • Fibreglass motor cowling, ready for painting.
  • All windshield and windows
  • Aluminum tow release mechanism

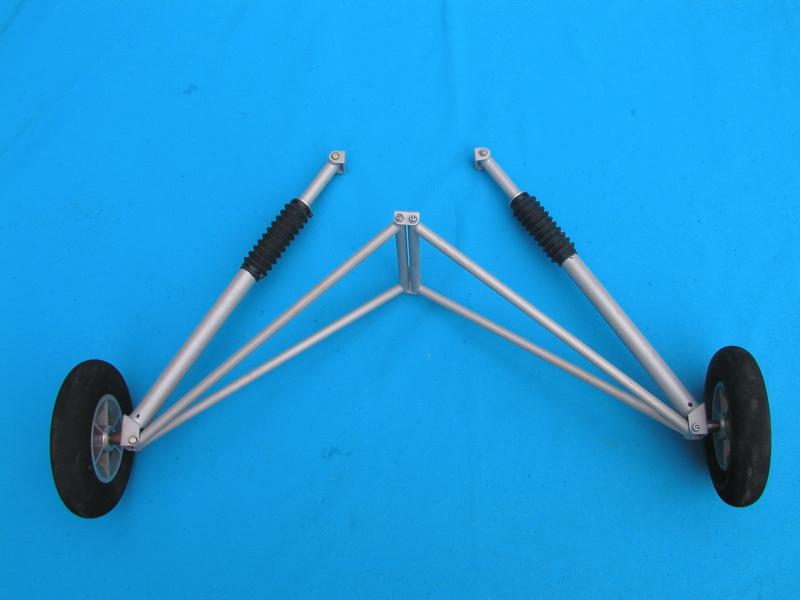

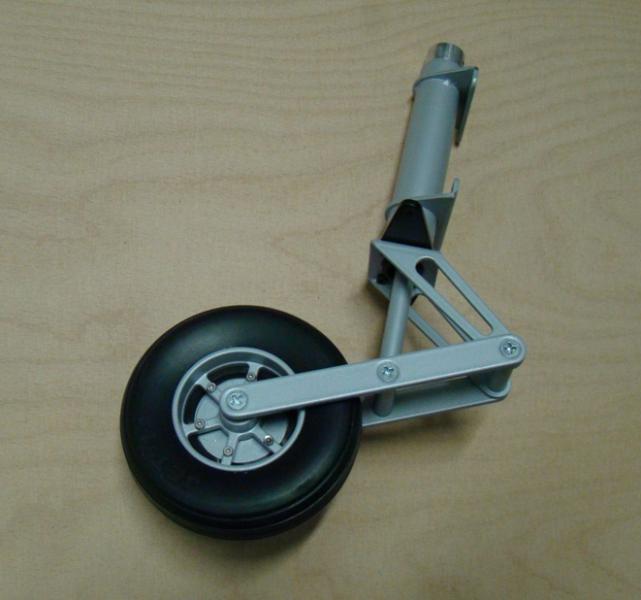

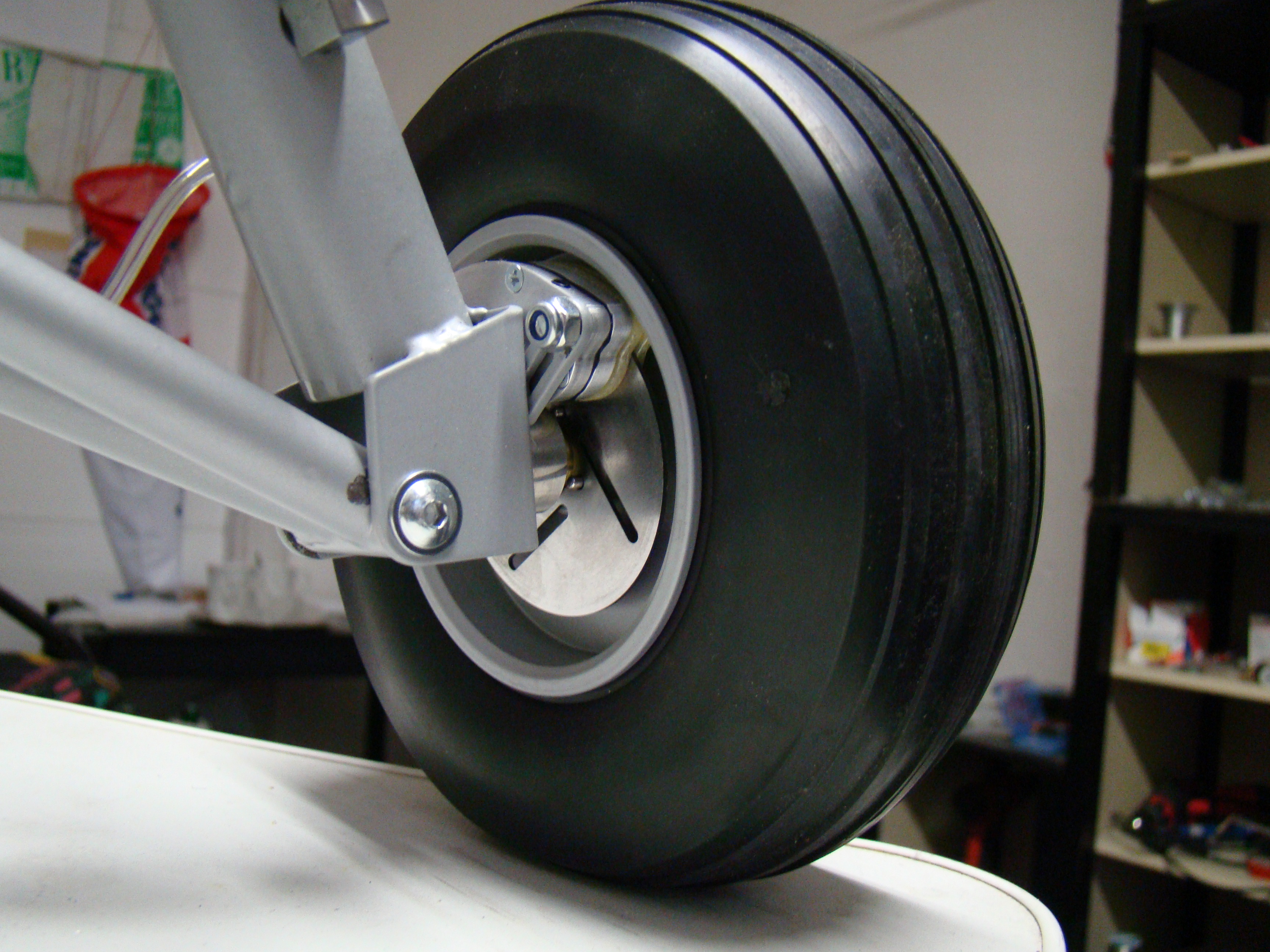

  • Scale heavy duty landing, spring loaded, with pneumatic brakes and wheels
  • Directional tail wheel, shock absorbed

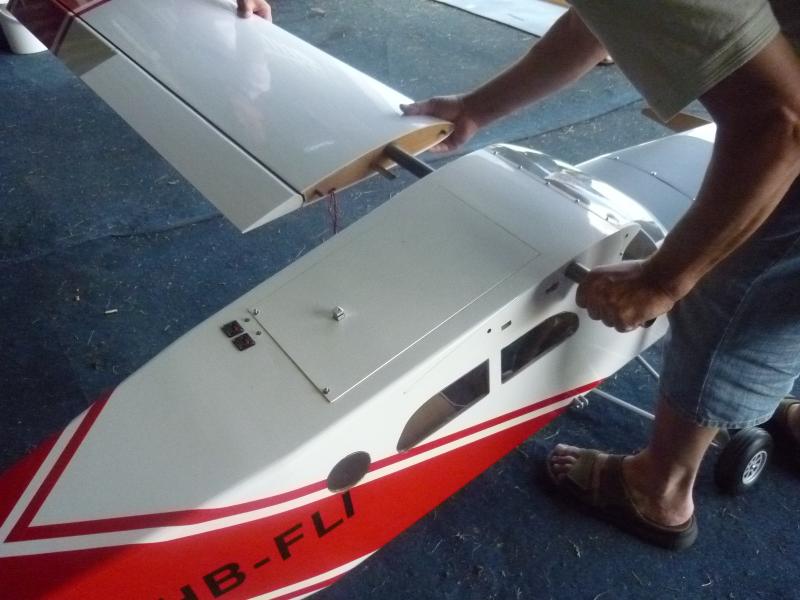

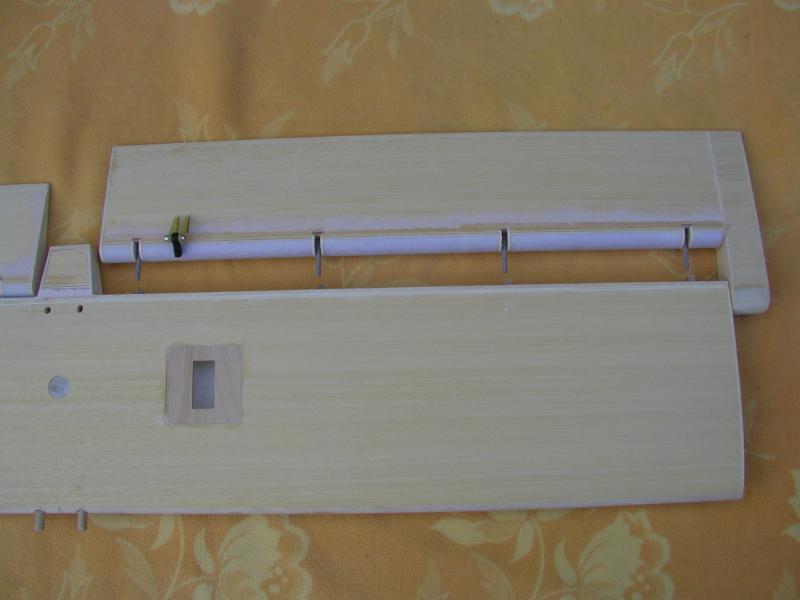

  • Wing are sheeted foam core, sanded ready to cover, ailerons and flaps finished with pin hinges
  • Hard wood struts with aluminum fittings
  • Build up tail, sanded ready to cover
  • Most required hardware



Pilatus Porter ARC kitprice: 2995.00 U$, new batch under production, availability autumn 2015
