MINI AC


Mini AC1215/16 Mini AC1215/20 Mini AC1215/EXTREME
Mini AC1215/12

Mini AC Specifications

Specifications Mini AC1215/12 Mini AC1215/16 Mini AC1215/20 Mini AC1215/ Extreme
Nominal Voltage V  V  V V
Operating Voltage 7-12V 7-10 V 7-12 V 7-10V
No Load Motor Speed RPM   RPM  RPM RPM
No load current (Io @ 9V) N/A  N/A N/A N/A
RPM per Volt (Kv) 4750 RPM/V 3800 RPM/V 3000 RPM/V 6370 RPM/V
Armature Resistance (Rt) 0.070 ohms 0.086 ohms 0.117 ohms 0.049 ohms
Max. Efficiency 78% 79% 78% 77%
Max. Efficiency Current 8-15 A (>70%) 5-10 A (>70%) 5-10 A (>71%) 14-22 A (>71%)
Max. Loading 20 A / 30 sec. 18 A / 20 sec. 16 A / 20 sec. 26 A / 20 sec.
Blocking Current TBD TBD TBD TBD

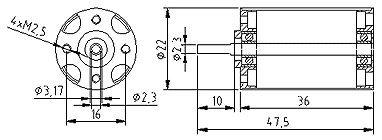

Dimensions 24.8x47.5 mm 22x47.5 mm 22x47.5 mm 24.8x65 mm
Shaft Diameter 2.3 mm 2.3 mm 2.3 mm 4 mm (GB)
Weight w/cables 53 g 48 g 49 g 77 g (w/GB)
Propeller range
and suited Gearboxes ratio
VMGM 4,64:1,
7 cells prop 9,5"x6"
VMGM 6,00:1
8 cells prop 10"x6"
Ducted fans dia. 55-65 mm
up to 10 cells
Gearb. 2,64:1 prop 8,5"x5"
Gearb. 3:1 prop 8,5"x5"
Gearb. 5,44:1 prop 9"x6"
Gearb. 6,95:1 prop 10"x7"
Microhelicopters
Ducted fans 400-480 (diam.<55mm)
Gearb. 2,64:1 prop 8,5"x5"
Gearb. 3:1 prop 9,5"x6"
Gearb. 5,44:1 prop 10"x7"
Gearb. 6,95:1 prop 10"x7"
VMGM 6,00:1
6 cells prop 12"x8"
VMGM 6,00:1
7 cells prop 11"x7"
VMGM 6,00:1
8 cells prop 10"x6"
Recommended
model weight
500 - 950 g 300 - 850 g 300 - 850 g 600 - 1200 g



Mini AC1215/12

300 size brushless motor with neodym magnets, dural case with cooling fins and unique solder posts for easy wiring is manufactured using modern technology from the finest materials. The motor is especially designed for ducted fans of 55-65 mm but it is also suitable for models of 400-480 size up to 950 g in weight. This motor is two pole, high RPM, and use with the VMGM planetary gearbox is highly recommended.



Mini AC1215/16

Brushless motors S300 size with neodymium magnets, carbon case and unique solder posts are manufactured using advanced technologies from finest materials. Twin ballraced hardened steel shaft and overall robust but very lightweight construction ensure very long lifetime. This small beauties are suitable for use with gearbox VMGM (coming soon) or in ducted fans.

No. Of cells Prop. Size Gearbox RPM V A Power OUT (W) ETA (%)
7 Aeronaut 8,5x5" 2,64:1 8700 7.5 10.9 59 72
8 Aeronaut 8,5x5" 2,64:1 9530 8.4 12.8 78 72
7 Aeronaut 8,5x6" 2,64:1 8190 7.4 12.6 66 71
8 Aeronaut 8,5x6" 2,64:1 8950 8.2 14.8 85 70
7 Aeronaut 8,5x5" 3:1 8240 7.7 8.9 50 73
8 Aeronaut 8,5x5" 3:1 9080 8.7 10.5 67 74
7 Aeronaut 8,5x6" 3:1 7810 7.6 10.3 57 73
8 Aeronaut 8,5x6" 3:1 8590 8.5 12.2 76 73
7 APC slow 9x6" 5,44:1 4930 8 6.3 36 72
8 APC slow 9x6" 5,44:1 5490 9 7.5 50 74
7 APC slow 10x7" 6,95:1 3960 8.1 5.5 31 71
8 APC slow 10x7" 6,95:1 4430 9.1 6.5 44 73



Mini AC1215/20

Brushless motors S300 size with neodymium magnets, carbon case and unique solder posts are manufactured using advanced technologies from finest materials. Twin ballraced hardened steel shaft and overall robust but very lightweight construction ensure very long lifetime. This small beauties are suitable for use with gearbox VMGM (coming soon) or in ducted fans.

No. Of cells Prop. Size Gearbox RPM V A Power OUT (W) ETA (%)
7 Aeronaut 8,5x5" 2,64:1 7540 7.6 6.6 37 73
8 Aeronaut 8,5x5" 2,64:1 8260 8.5 8.1 51 73
10 Aeronaut 8,5x5" 2,64:1 9610 10.2 10.7 80 74
7 Aeronaut 8,5x6" 2,64:1 7100 7.5 8 43 72
8 Aeronaut 8,5x6" 2,64:1 7770 8.3 9.4 56 72
10 Aeronaut 8,5x6" 2,64:1 8960 9.9 12.1 86 71
7 Aeronaut 9,5x6" 2,64:1 6220 7.2 10.3 50 68
8 Aeronaut 9,5x6" 2,64:1 6740 7.9 12 64 67
7 Aeronaut 9,5x6" 3:1 6010 7.4 8.7 45 71
8 Aeronaut 9,5x6" 3:1 6560 8.2 10.1 59 71
7 Aeronaut 10x7" 3:1 5540 7.2 10.2 50 68
8 Aeronaut 10x7" 3:1 6000 8 11.8 63 68
7 APC slow 9x6" 5,44:1 4160 8.1 3.9 22 70
8 APC slow 9x6" 5,44:1 4660 9.1 4.7 31 72
7 APC slow 10x7" 5,44:1 3920 7.9 5.3 30 72
8 APC slow 10x7" 5,44:1 4350 8.8 6.3 41 74
2xLi-Po APC slow 10x7" 5,44:1 3680 7.4 4.8 25 71
3xLi-Po APC slow 10x7" 5,44:1 4980 10.3 8.2 63 75
3xLi-Po APC slow 10x7" 6,95:1 4320 10.7 5.1 40 74



Mini AC1215/EXTREME

The most powerful of the 300 size MiniAC brushless motors with neodym magnets, dural can with cooling fins, unique solder posts for easy wiring and it is supplied with the all dural planetary gearbox, VMGM 6,00:1. The motor is manufactured using modern technology from the finest materials. The motor is especially designed for performance models of 480-600 size up to 1200 g in weight. This motor is two pole, high RPM, and is used only with the VMGM planetary gearbox. Recommended speed controllers Model Motors 25+3ph and 40e-3ph.

EXTREME is delivered with already mounted and break-in planetry gearbox VMGM 6,00:1. High quality grease for easy gearbox maintenance is also delivered as standard.

No. Of cells Prop. Size Gearbox RPM V A Power OUT (W) ETA icl. Gear(%)
6 Aer CAM 12x8" 6,00:1 5690 6,3 26,8 118 70
6 Aer CAM 12x9" 6,00:1 5500 6,2 28,6 125 70
7 Aer CAM 11x7" 6,00:1 6820 7,3 26,9 141 72
7 Aer CAM 11x8" 6,00:1 6620 7,2 28,7 148 72
8 Aer CAM 9,5x5" 6,00:1 8830 8,7 19,2 120 72
8 Aer CAM 10x6" 6,00:1 8460 8,6 22,6 141 73
8 Aer CAM 10x8" 6,00:1 7810 8,2 28,6 171 73
