AXI 53xx


AXI 5320/28 AXI 5320/34 AXI 5330/18 AXI 5330/24
Dimensions

AXI 5320/28

These very efficient brushless motors with neodymium magnets and a rotating case are manufactured using the latest technology from the finest quality materials. The hardened steel 8 mm shaft is supported by three high quality ball bearings, and the overall robust construction ensures a long service life. Due to itís high torque characteristics this motor is capable of turning large propellers with a high level of efficiency, and without the need for a gearbox. These motors are suitable for large sailplanes weighing up to 8 000 g and sports aerobatic models up to 6 000g. The lack of gearbox noise makes these motors particularly suitable for scale models. AXI 53xx motors offer front and reverse (radial) mounting options, and two prop adapters for both mounting options are included as standard.

Specification
Voltage range max. 32 cells
max. 10s Li-Poly
RPM per Volt 249 RPM/V
Max. Efficiency 92%
Max. Efficiency Current 10-36 A (>85%)
Max. loading 50 A / 60 s
No load Current/30V 1,5 A
Internal resistance 57 mohm
Dimensions 63x54 mm
Shaft Diameter 8 mm
Weight 495 g
Recommended model weight 4 000 - 8 000 g
Propeller range 8s Li-Poly cells prop 21"x14" APC-E
10s Li-Poly cells prop 18"x12" APC-E


Prop. Battery U/V RPM I/A P- OUT (W)
18x12 10S LiPo 31.5 6120 48.2A 1518
21x14 8SLiPo 25.2 4725 47A 1184
18x10 10S LiPo 32.5 6470 43A 1397
20x10 8SLiPo 26.4 5200 42.3A 1117

AXI 5320/34

Specification
Voltage range max. 32 cells
max. 10s Li-Poly
RPM per Volt 206 RPM/V
Max. Efficiency 93%
Max. Efficiency Current 8-32 A (>85%)
Max. loading 45 A / 30 s
No load Current/30V 1,2 A
Internal resistance 84 mohm
Dimensions 63x54 mm
Shaft Diameter 8 mm
Weight 495 g
Recommended model weight 4 000 - 8 000 g
Propeller range 10s Li-Poly cells prop 19"x12" APC-E
10s Li-Poly cells prop 20"x11" APC-E




Prop. Battery U/V RPM I/A P- OUT (W)
19x12 10S LiPo 37.5 5470 37.5A 1282
20x11 10SLiPo 38.5 5440 38.5A 1309


AXI 5330/18

These very efficient brushless motors with neodymium magnets and a rotating case are manufactured using the latest technology from the finest quality materials. The hardened steel 8 mm shaft is supported by three high quality ball bearings, and the overall robust construction ensures a long service life. Due to itís high torque characteristics this motor is capable of turning large propellers with a high level of efficiency, and without the need for a gearbox. These motors are suitable for large sailplanes weighing up to 10 000 g and sports aerobatic models up to 7 000 g. The lack of gearbox noise makes these motors particularly suitable for scale models. AXI 53xx motors offer front and reverse (radial) mounting options, and two prop adapters for both mounting options are included as standard. The AXI 5330/18 has been used in F3A competition aerobatics with great success.

Specification
Voltage range max. 32 cells
max. 10s Li-Poly
RPM per Volt 249 RPM/V
Max. Efficiency 90%
Max. Efficiency Current 25-60 A (>85%)
Max. loading 75 A / 30 s
No load Current/30V 2 A
Internal resistance 32 mohm
Dimensions 63x64 mm
Shaft Diameter 8 mm
Weight 652 g
Recommended model weight 5 000 - 10 000 g
Propeller range 10s Li-Poly cells prop 19"x12" APC-E
10s Li-Poly cells prop 20"x13" APC-E (F3A set-up)



Prop. Battery U/V RPM I/A P- OUT (W)
19x12 10S LiPo 30 6170 64.5.0A 1935
20x11 10SLiPo 29.5 6110 63.0A 1858
20x13 10SLiPo   5060 91.0A


AXI 5330/24

Specification
Voltage range max. 32 cells
max. 10s Li-Poly
RPM per Volt 197 RPM/V
Max. Efficiency 91%
Max. Efficiency Current 15-38 A (>85%)
Max. loading 58 A / 30 s
No load Current/30V 1,5 A
Internal resistance 57 mohm
Dimensions 63x64 mm
Shaft Diameter 8 mm
Weight 652 g
Recommended model weight 5 000 - 10 000 g
Propeller range 10s Li-Poly cells prop 23"x10" wooden
10s Li-Poly cells prop 21"x14" APC-E



Prop. Battery U/V RPM I/A P- OUT (W)
21x14 10S LiPo 33.5 5270 46.5A 1558
23x10 10SLiPo 34.8 5630 39.4A 1371

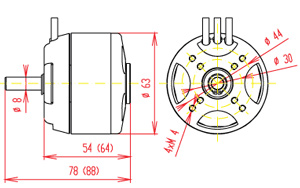

Dimensions
