AXI 22xx


AXI 2203/46 AXI 2203/52   AXI 2204/54
AXI 2208/20 AXI 2208/26 AXI 2208/34
AXI 2212/12 AXI 2212/20 AXI 2212/26 AXI 2212/34
AXI 2217/9D AXI 2212/12 AXI 2212/16 AXI 2212/20

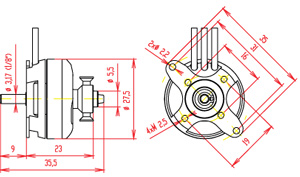

AXI 2204/54

Specification
Voltage range 6-7 cells
2-3xLi-Poly
RPM per Volt 1,380 RPM/V
Max. Efficiency 75%
Max. Efficiency Current 2-5 A (>65%)
Max. loading 6,5 A / 30 s
No load Current / 8V 0,45 A
Internal resistance 450 mohm
Dimensions 27,5x23 mm
Shaft Diameter 3,17 mm
Weight 24,5 g
Recommended model weight 100 - 280 g
Propeller range 3 cells prop 7"x3,5"
2 cells prop 8"x4"
2 cells prop 79"x5"







Prop. w/o gearbox Battery U/V RPM I/A P- OUT (W) P- IN (W) Efficiency (%)
6x3 GWS Hyper 2x340 LiPol 7,1 9500 1,9 10 13 74
6x3 GWS Hyper 3x340 LiPol 10,1 12470 3,5 26 35 75
7x3,5 GWS Hyper 2x340 LiPol 7 8410 2,6 14 18 75
7x3,5 GWS Hyper 3x340 LiPol 9,8 11220 4,6 33 45 73
8x4 GWS Hyper 2x340 LiPol 6,6 6760 4,3 19 28 68
9x5 GWS Hyper 2x340 LiPol 6,2 5140 5,8 20 36 56
10x4,7 APC Slow 2x340 LiPol 6 4080 6,7 18 40 46

AXI 2208/20

Small and very robust but light weight (45 g with 14 cm long power wires) brushless motor with rotating case suitable for all models of 300-400 size wich surprised you with very high power can deliver. Hardened steel Shaft have 3,17 mm and is supported by two large ball bearings wich ensure very good mechanical stability. Thanks to using newest materials this motors achive in their weight category extremely high efficiency and high load possibility. A new future in AXI design is a provision for radial mounting.

Accessories for AXI 22xx/xx, click here.

Specification
Voltage range 4-8 cells
2-3xLi-Poly
RPM per Volt 1,880 RPM/V
Max. Efficiency 82%
Max. Efficiency Current 8-12 A (>75%)
Max. loading 16 A / 60 s
No load Current / 8V 0,8 A
Internal resistance 89 mohm
Dimensions 27,7x26 mm
Shaft Diameter 3,17 mm
Weight 45 g
Recommended model weight 200 - 500 g
Propeller range 4 cells prop 9"x6"
6 cells prop 8"x5"
8 cells prop 7,5"x4"







Prop. w/o gearbox Battery I/A RPM U (V) P- OUT (W) P- IN (W) Efficiency (%)
8,5x6 Aer Glas 4xRC 2/3SC 10,6 6790 4,6 37 48 76
8,5x6 Aer Glas 5x RC2/3SC 14,4 7950 5,6 60 80 74
8x6 Gr. CAM slim prop 4x RC2/3SC 11,8 6500 4,6 40 54 74
8x6 Gr. CAM slim prop 5x RC2/3SC 15,5 7560 5,6 63 86 72
8,5x6 Gr. CAM slim prop 4x RC2/3SC 13,4 6110 4,5 44 60 72
8x4 Gr. CAM slim prop 6x N500AR 12,1 8960 5,9 57 71 79
7,5x4 Gr. CAM fold. prop 7x N500AR 12 10810 6,9 66 82 79
6,5x4 Aer Glas 8x N500AR 10,9 13150 8,1 71 88 81

AXI 2208/26

Small and very robust but light weight (45 g with 14 cm long power wires) brushless motor with rotating case suitable for all models of 300-400 size wich surprised you with very high power can deliver. Hardened steel Shaft have 3,17 mm and is supported by two large ball bearings wich ensure very good mechanical stability. Thanks to using newest materials this motors achive in their weight category extremely high efficiency and high load possibility. A new future in AXI design is a provision for radial mounting.

Accessories for AXI 22xx/xx, click here.

Specification
Voltage range 6-8 cells
2-3xLi-Poly
RPM per Volt 1,420 RPM/V
Max. Efficiency 82%
Max. Efficiency Current 5-9 A (>74%)
Max. loading 11 A / 60 s
No load Current / 8V 0,6 A
Internal resistance 155 mohm
Dimensions 27,7x26 mm
Shaft Diameter 3,17 mm
Weight 45 g
Recommended model weight 200 - 500 g
Propeller range 2xLi-Poly prop 8"x4,5"
3xLi-Poly prop 7"x4"
8 cells prop 8,5"x5"






Prop. w/o gearbox Battery I/A RPM U (V) P- OUT (W) P- IN (W) Efficiency (%)
7,5x4 Gr. CAM fold. prop 2xLi-Poly 6,1 8630 6,9 35 42 81
7,5x4 Gr. CAM fold. prop 7x N500AR 7,2 9380 7,6 44 54 80
7,5x4 Gr. CAM fold. prop 8x N500AR 8,5 10270 8,5 58 72 79
8x4,5 Gr. CAM fold. prop 7x N500AR 8,8 8600 7,4 50 65 77
8x4,5 Gr. CAM fold. prop 8x N500AR 10,2 9330 8,2 64 83 76
8,5x5 Aer Glas 7x N500AR 9,4 8290 7,3 52 68 76
8,5x5 Aer Glas 8x N500AR 10,9 8960 8,1 66 88 74
8,5x6 Aer Glas 7x N500AR 10,3 7670 7,1 56 73 77

AXI 2208/34

Small and very robust but light weight (45 g with 14 cm long power wires) brushless motor with rotating case suitable for all models of 300-400 size wich surprised you with very high power can deliver. Hardened steel Shaft have 3,17 mm and is supported by two large ball bearings wich ensure very good mechanical stability. Thanks to using newest materials this motors achive in their weight category extremely high efficiency and high load possibility. A new future in AXI design is a provision for radial mounting.

Accessories for AXI 22xx/xx, click here.

Specification
Voltage range 6-10 cells
2-3xLi-Poly
RPM per Volt 1,080 RPM/V
Max. Efficiency 81%
Max. Efficiency Current 4-7 A (>74%)
Max. loading 8 A / 60 s
No load Current / 8V 0,35 A
Internal resistance 260mohm
Dimensions 27,7x26 mm
Shaft Diameter 3,17 mm
Weight 45 g
Recommended model weight 200 - 500 g
Propeller range 2xLi-Poly prop 10"x5"
3xLi-Poly prop 9"x4"
10 cells prop 8,5"x5"




Prop. w/o gearbox Battery I/A RPM U (V) P- OUT (W) P- IN (W) Efficiency (%)
9x3,75 APC Slow 2xLi-Poly 5,5 6190 7,1 31 39 79
9x3,75 APC Slow 3xLi-Poly 8,8 7880 9,6 63 84 75
10x4,75 APC Slow 2xLi-Poly 7,8 4820 6,6 36 51 70
9x6 APC Slow 2xLi-Poly 7,8 4890 6,6 36 51 70
8,5x5 Aer Glas 7x N350AA 4,9 6870 7,6 30 37 80
8,5x5 Aer Glas 8x N350AA 5,8 7510 8,4 39 48 79
8,5x5 Aer Glas 10x N350AA 7,6 8640 10 59 76 77
8x6 Graup. CAM slim prop 7x N350AA 6,2 6140 7,3 35 45 77
8x6 Graup. CAM slim prop 8x N350AA 7,3 6660 8,1 44 59 75
9,5x5 Aer Glas 7x N350AA 6,9 5820 7,2 37 49 74

AXI 2212/20

Small and very robust but light weight (57 g with 14 cm long power wires) brushless motor with rotating case suitable for all models of 300-400 size wich surprised you with very high power can deliver. Hardened steel Shaft have 3,17 mm and is supported by two large ball bearings wich ensure very good mechanical stability. Thanks to using newest materials this motors achive in their weight category extremely high efficiency and high load possibility. A new future in AXI design is a provision for radial mounting.

Accessories for AXI 22xx/xx, click here.

Specification
Voltage range 6-10 cells
2-3xLi-Poly
RPM per Volt 1,190 RPM/V
Max. Efficiency 82%
Max. Efficiency Current 6-12 A (>75%)
Max. loading 16 A / 60 s
No load Current / 8V 0,7 A
Internal resistance 135 mohm
Dimensions 27,7x30 mm
Shaft Diameter 3,17 mm
Weight 57 g
Recommended model weight 300 - 800 g
Propeller range 7 cells prop 9,5"x5"
8 cells prop 9"x5"
10 cells prop 8,5"x6"


Prop. w/o gearbox Battery I/A RPM U (V) P- OUT (W) P- IN (W) Efficiency (%)
8x4,5 Gr. CAM fold.prop 7xRC 2/3SC 7,9 8720 8,1 52 64 81
8x4,5 Gr. CAM fold.prop 8x RC2/3SC 9,6 9640 9,1 69 87 80
8x4,5 Gr. CAM fold.prop 10x RC2/3SC 13,1 11310 11 114 144 79
8,5x5 Aer Glas 7x RC2/3SC 8,6 8490 8 55 68 80
8,5x5 Aer Glas 8x RC2/3SC 10,4 9370 9 76 93 80
8,5x5 Aer Glas 10x RC2/3SC 14,1 10940 10,9 120 153 78
8,5x6 Aer Glas 7x RC2/3SC 10,2 8070 7,9 64 80 79
8,5x6 Aer Glas 8x RC2/3SC 12,2 8840 8,9 83 108 77
8,5x6 Aer Glas 10x RC2/3SC 16,1 10210 10,7 131 172 76
9x5 Gr. CAM fold.prop 7x RC2/3SC 10,4 7970 7,9 65 82 78
9x5 Gr. CAM fold.prop 8x RC2/3SC 12,5 8740 8,8 85 110 77
9,5x5 Aer Glas 7x RC2/3SC 12,6 7310 7,7 73 97 75

AXI 2212/26

Small and very robust but light weight (57  with 14 cm long power wires) brushless motor with rotating case suitable for all models of 300-400 size wich surprised you with very high power can deliver. Hardened steel Shaft have 3,17 mm and is supported by two large ball bearings wich ensure very good mechanical stability. Thanks to using newest materials this motors achive in their weight category extremely high efficiency and high load possibility. A new future in AXI design is a provision for radial mounting.

Accessories for AXI 22xx/xx, click here.

Specification
Voltage range 6-8 cells
2-3xLi-Poly
RPM per Volt 840 RPM/V
Max. Efficiency 79%
Max. Efficiency Current 6-10 A (>73%)
Max. loading 12 A / 60 s
No load Current / 8V 0,45 A
Internal resistance 210 mohm
Dimensions 27,7x30 mm
Shaft Diameter 3,17 mm
Weight 57 g
Recommended model weight 300 - 700 g
Propeller range 2xLi-Poly prop 10,5"x6"
7 cells prop 10,5"x6"
8 cells prop 10"x6"


Prop. w/o gearbox Battery I/A RPM U (V) P- OUT (W) P- IN (W) Efficiency (%)
9x6 APC Slow 2xPi-Pol 7,1 5000 6,7 38 47 79
9x6 APC Slow 3xPi-Pol 12,1 6560 9,4 86 113 75
10x4,75 APC Slow 2xPi-Pol 6,8 5070 6,8 37 46 80
10x4,75 APC Slow 3xPi-Pol 11,7 6680 9,5 84 111 76
10x7 APC Slow 2xPi-Pol 9,2 4460 6,6 45 60 74
11x8 Gr. CAM gear prop 2xPi-Pol 9,2 4460 6,6 45 60 74
10x7 Aer Glas elektro 3xPi-Pol 11,9 6620 9,5 85 113 75
10,5x6 Aer Glas elektro 3xPi-Pol 12,3 6500 9,4 86 115 75
9,5x5 Aer Glas elektro 8x N500AR 7,5 6660 8,6 52 64 81
9,5x5 Aer Glas elektro 10x N500AR 10 7730 10,3 82 103 80
10x6 Aer Glas elektro 8x N500AR 8,8 6240 8,4 59 74 79
10x6 Aer Glas elektro 10x N500AR 11,6 7170 10 89 116 77
10,5x5 Aer Glas elektro 8x N500AR 10 5860 8,2 63 82 76
10,5x7 Aer Glas elektro 8x N500AR 10,4 5710 8,2 64 85 75
10,5x8 Aer Glas elektro 8x N500AR 11,1 5500 8,1 66 90 74

AXI 2212/34

Small and very robust but light weight (57 g with 14 cm long power wires) brushless motor with rotating case suitable for all models of 300-400 size wich surprised you with very high power can deliver. Hardened steel Shaft have 3,17 mm and is supported by two large ball bearings wich ensure very good mechanical stability. Thanks to using newest materials this motors achive in their weight category extremely high efficiency and high load possibility. A new future in AXI design is a provision for radial mounting.

Accessories for AXI 22xx/xx, click here.

Specification
Voltage range 6-10 cells
2-3xLi-Poly
RPM per Volt 740 RPM/V
Max. Efficiency 77%
Max. Efficiency Current 4-8 A (>70%)
Max. loading 10 A / 60 s
No load Current / 12V 0,4 A
Internal resistance 345 mohm
Dimensions 27,7x30 mm
Shaft Diameter 3,17 mm
Weight 57 g
Recommended model weight 300 - 700 g
Propeller range 2xLi-Poly prop 12"x8"
3xLi-Poly prop 10"x5"
10 cells prop 10,5"x7"


Prop. w/o gearbox Battery I/A RPM U (V) P- OUT (W) P- IN (W) Efficiency (%)
9x6 APC Slow 3xPi-Pol 7,2 5770 10,2 58 73 79
10x4,75 APC Slow 3xPi-Pol 6,9 5850 10,2 56 70 80
10x7 APC Slow 3xPi-Pol 9,4 5170 9,9 69 93 74
11x4,75 APC Slow 3xPi-Pol 9,4 5160 9,9 69 93 74
11x8 Gr. CAM gear prop 3xPi-Pol 9,3 5200 9,9 69 92 75
10x7 Aer Glas elektro 10x N500AR 7,7 6030 10,8 64 83 78
10,5x7 Aer Glas elektro 8x N500AR 6,2 4990 8,8 43 54 78
10,5x7 Aer Glas elektro 10x N500AR 8,3 5810 10,6 68 88 76
10,5x8 Aer Glas elektro 8x N500AR 6,7 4840 8,8 45 59 77
10,5x8 Aer Glas elektro 10x N500AR 8,9 5610 10,5 70 93 75
11x8 Gr. CAM gear prop 8x N500AR 7,5 4620 8,6 49 64 76
11x8 Gr. CAM gear prop 10x N500AR 9,9 5350 10,3 75 101 74
