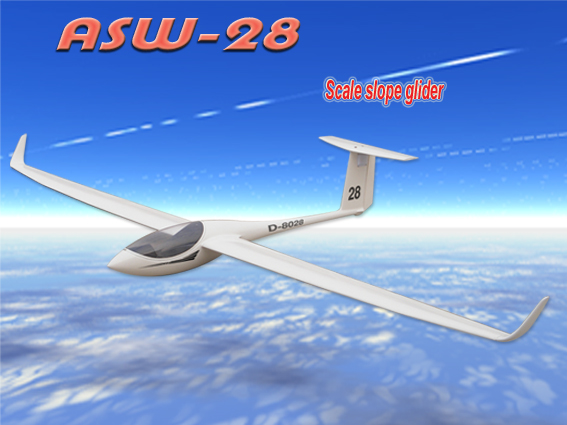

ASW-28 2.5m


Wing Span: 2.53 m (100")
Wing Area:  28.5 dm2 ( 442 sq. in.)
Wing Airfoil: HQ 3/15
Wing Loading: 50 g/dm2 (13.5 oz/sq. ft.)
Flying Weight: 1.2-1.4kg (43 oz)
Radio: Standard radio
Micro servos for the wings

We have made an intrusion into the latest offering of Chinese production. This semi scale ASW-28 is a good example of what currently the Chinese manufacturer have to offer. It is a neat stand off scale reproduction of the famous ASW-28 from Schleicher.

The size of this glider and its cost makes it a great candidate to get into scale soaring. This kit feature finished wings, covered, ready for radio gear installation. Wing tip extensions are hollow molded and are of plug in type. Fuselage comes with canopy and tray, tail surfaces are also finished wood construction. The neat wing planform will give you a smooth handling, a great LD and nice thermal handling. The HQ airfoil has very smooth and forgiving flying characteristics. It is easy to do tight circles without tip stalling out. Also easy to winch, it likes it behind a tow plane for thermal duration flying or light aerobatic program.

Radio requirements are two micro servos for the ailerons, one micro for the elevator, and a  rudder servo. An additional servo might be installed for aerotow.

ASW-28 (2.5 m) RTF  kit, price: 259.00 U$
