Cierva C30
Rainbow
LA 500


LA 500



Rotor: 1100 mm (43.3")
Length: 540 mm (21")
Flying Weight: 1200 g (42.3 oz)
Motor: C3536/05
Battery: 3 S LiPo 2000 mAh

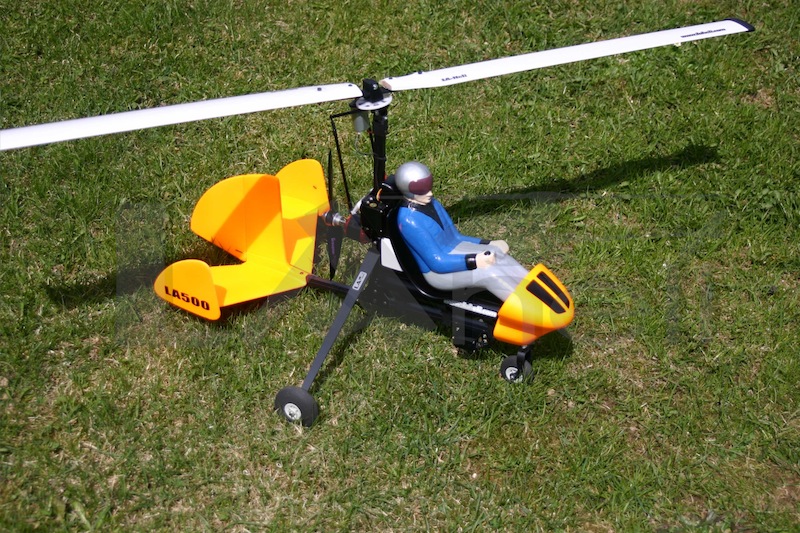

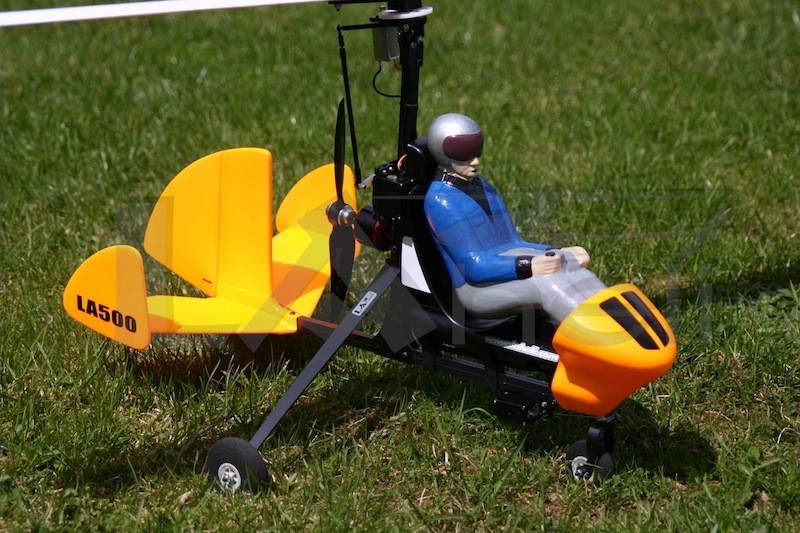

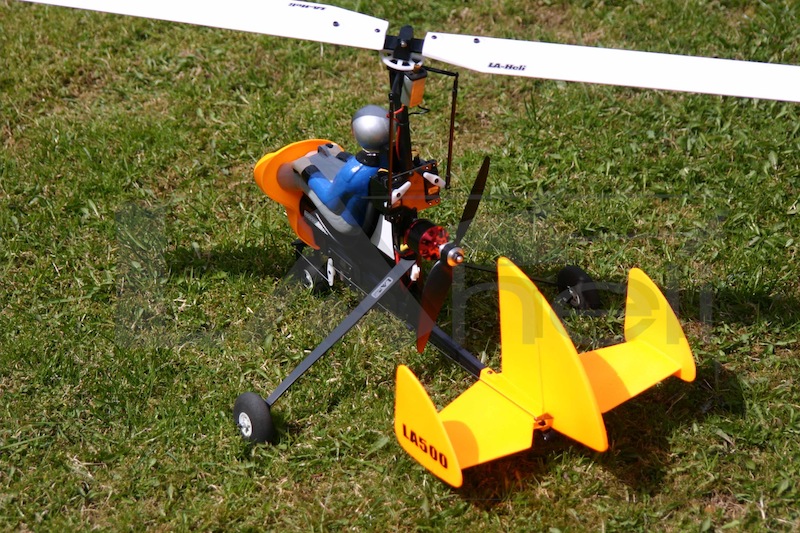

The LA500 is a self starting autogyro model. An autogyro is a type of rotary wing aircraft supported in flight by the lift provided by a rotor. Unlike a helicopter, the rotor of an autogyro is driven by aerodynamic forces alone once it is in flight, and thrust is provided by an engine-powered propeller similar to that of a fixed-wing aircraft. This kit includes a LA500 autogyro kit, a pre-rotation motor and a pre-rotation motor controller.

The rotor is composed by 2 blades. The thrust is provided by a brushless motor outrunner.

Complete pricelist, click here. Parts required to complete the kit:
  Motor C3536/05 brushless
Video of prototype: Speed controller  HK 40
take off Prop MA 8x6 (3 blades)
in flight Battery EP21003S1P
  (3) servos HS-225
